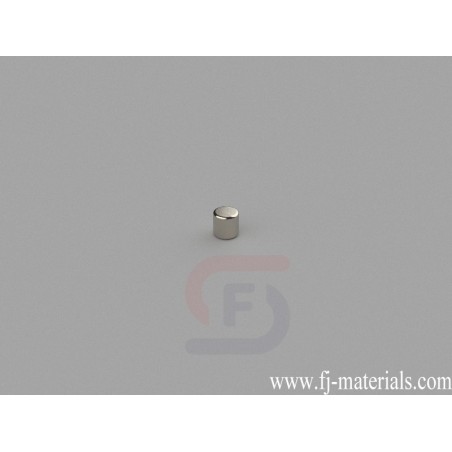

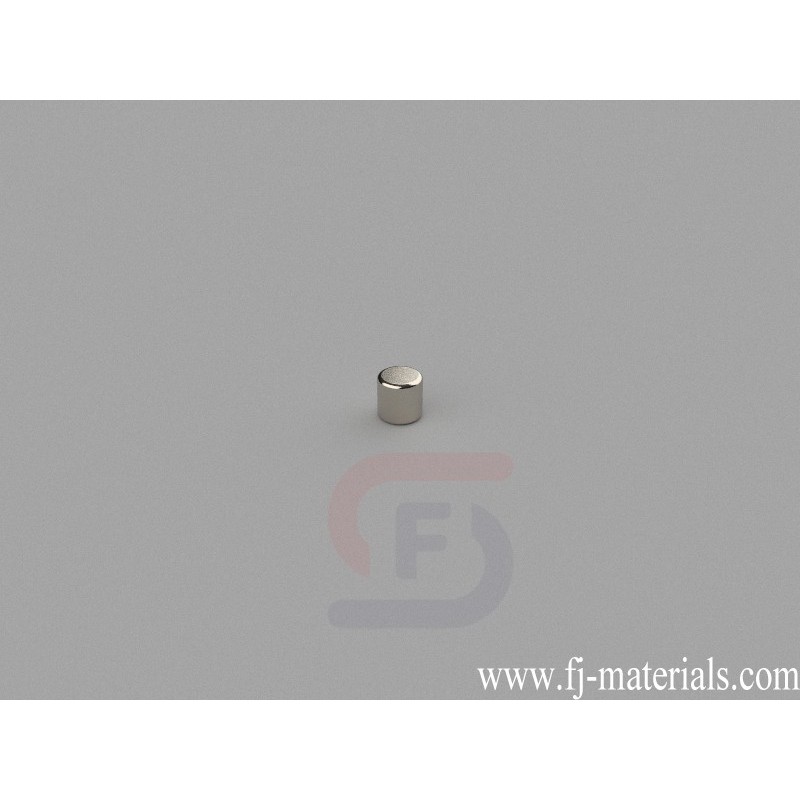

2mm dia. x 2mm thick Cylinder Magnets | D2x2mm

D2x2mm Neodymium Magnet, 2 x 2mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.62 lbs (0.28kg).

D2x2mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 2mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.62 lbs (0.28kg). Magnetization direction: Axial (Poles on Flat Ends)

D2x2mm Neodymium Magnet, 2 x 2mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.62 lbs (0.28kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D2x2mm

Data sheet

Item Number
D2x2mm
Material
NdFeB
Grade
N42
Size
2mm dia. x 2mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.047g
Pull Force
0.62 lbs (0.28kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
