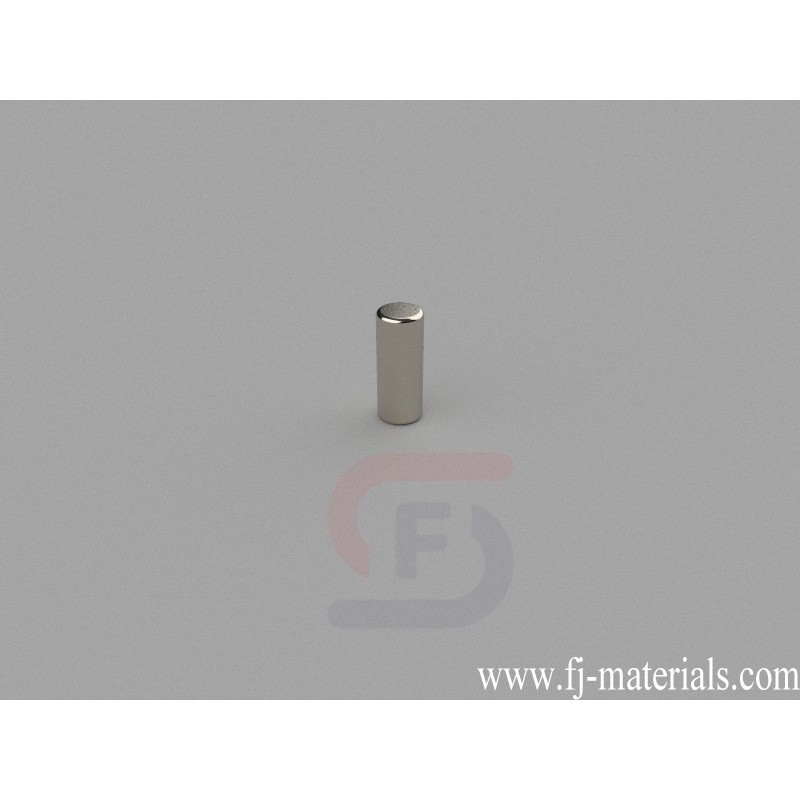

2mm dia. x 5mm thick Cylinder Magnets | D2x5mm
D2x5mm Neodymium Magnet, 2 x 5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 0.98 lbs (0.45kg).
D2x5mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 2mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.98 lbs (0.45kg). Magnetization direction: Axial (Poles on Flat Ends)
D2x5mm Neodymium Magnet, 2 x 5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 0.98 lbs (0.45kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D2x5mm
Data sheet
- Item Number
- D2x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 2mm dia. x 5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.118g
- Pull Force
- 0.98 lbs (0.45kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- B. 3.18-6.35mm
D2x5mm Neodymium Magnet, 2 x 5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 0.98 lbs (0.45kg).
