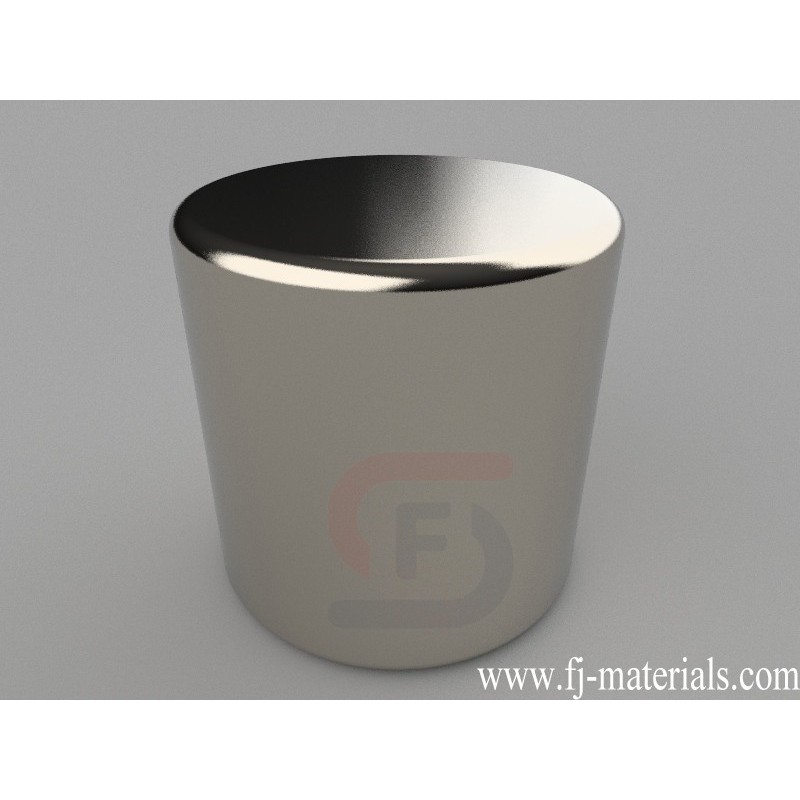

30mm dia. x 30mm thick Cylinder Magnets | D30x30mm

D30x30mm Neodymium Magnet, 30 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 106.81 lbs (48.55kg).

D30x30mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 30mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 106.81 lbs (48.55kg). Magnetization direction: Axial (Poles on Flat Ends)

D30x30mm Neodymium Magnet, 30 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 106.81 lbs (48.55kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D30x30mm

Data sheet

Item Number
D30x30mm
Material
NdFeB
Grade
N42
Size
30mm dia. x 30mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
159.043g
Pull Force
106.81 lbs (48.55kg)
Diameter
G. 25.4-50.8mm
Thickness
G. 25.4-50.8mm
