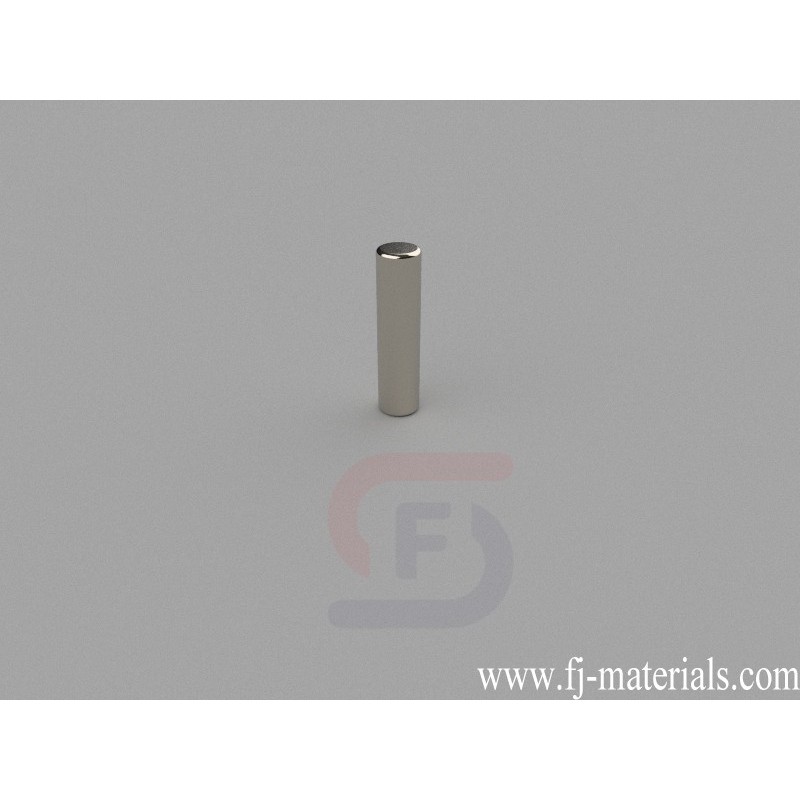

3mm dia. x 12mm thick Cylinder Magnets | D3x12mm
D3x12mm Neodymium Magnet, 3 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 2.69 lbs (1.22kg).
D3x12mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 3mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.69 lbs (1.22kg). Magnetization direction: Axial (Poles on Flat Ends)
D3x12mm Neodymium Magnet, 3 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 2.69 lbs (1.22kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D3x12mm
Data sheet
- Item Number
- D3x12mm
- Material
- NdFeB
- Grade
- N42
- Size
- 3mm dia. x 12mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.636g
- Pull Force
- 2.69 lbs (1.22kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- D. 9.53-12.7mm
D3x12mm Neodymium Magnet, 3 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 2.69 lbs (1.22kg).
