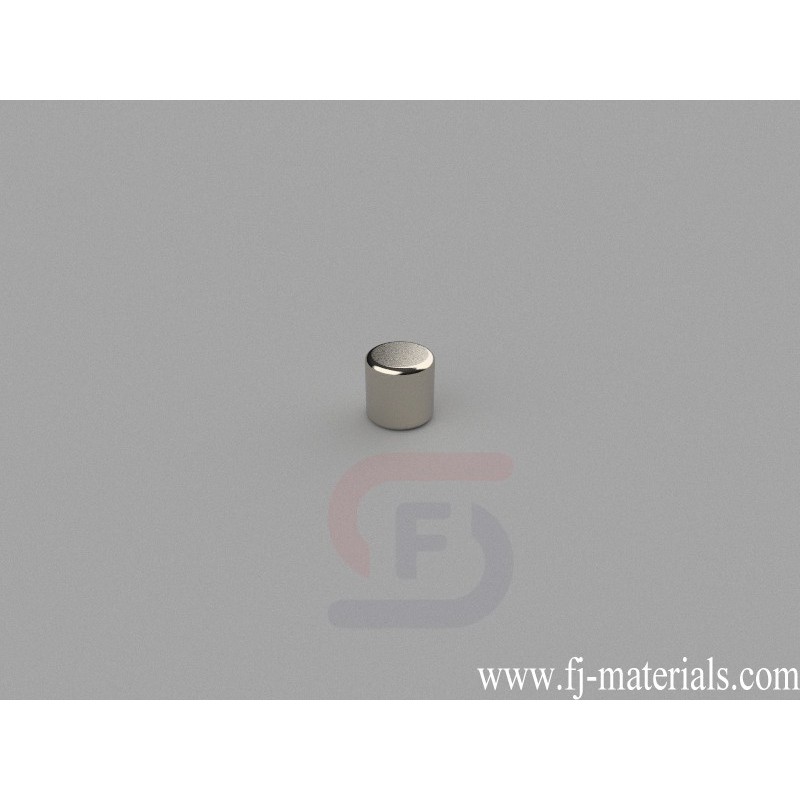

3mm dia. x 3mm thick Cylinder Magnets | D3x3mm

D3x3mm Neodymium Magnet, 3 x 3mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 1.34 lbs (0.61kg).

D3x3mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 3mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.34 lbs (0.61kg). Magnetization direction: Axial (Poles on Flat Ends)

D3x3mm Neodymium Magnet, 3 x 3mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 1.34 lbs (0.61kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D3x3mm

Data sheet

Item Number
D3x3mm
Material
NdFeB
Grade
N42
Size
3mm dia. x 3mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.159g
Pull Force
1.34 lbs (0.61kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
