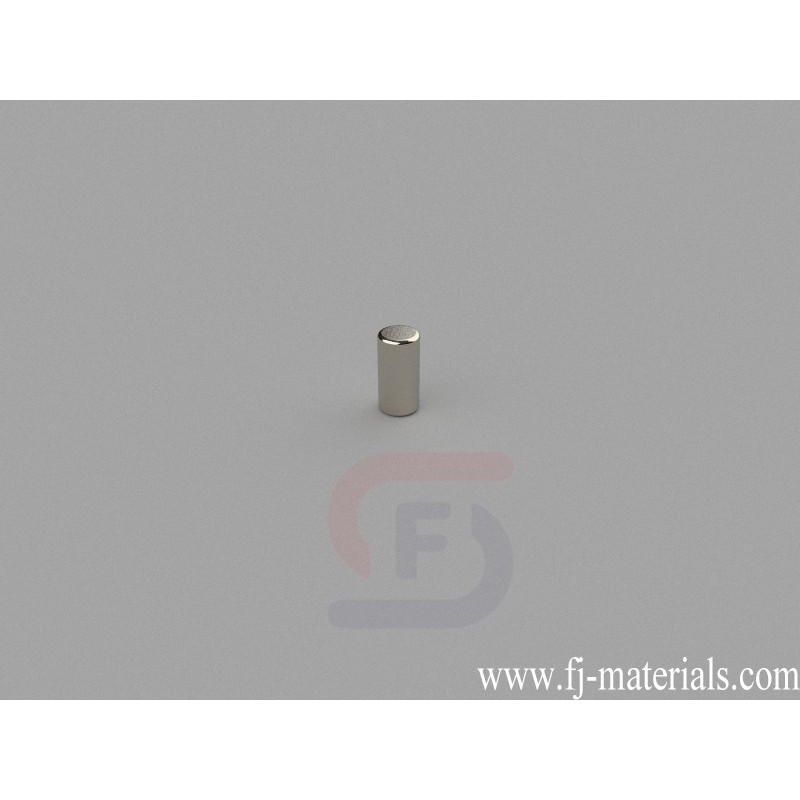

3mm dia. x 6mm thick Cylinder Magnets | D3x6mm
D3x6mm Neodymium Magnet, 3 x 6mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 1.90 lbs (0.86kg).
D3x6mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 3mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.90 lbs (0.86kg). Magnetization direction: Axial (Poles on Flat Ends)
D3x6mm Neodymium Magnet, 3 x 6mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 1.90 lbs (0.86kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D3x6mm
Data sheet
- Item Number
- D3x6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 3mm dia. x 6mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.318g
- Pull Force
- 1.90 lbs (0.86kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- B. 3.18-6.35mm
D3x6mm Neodymium Magnet, 3 x 6mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 1.90 lbs (0.86kg).
