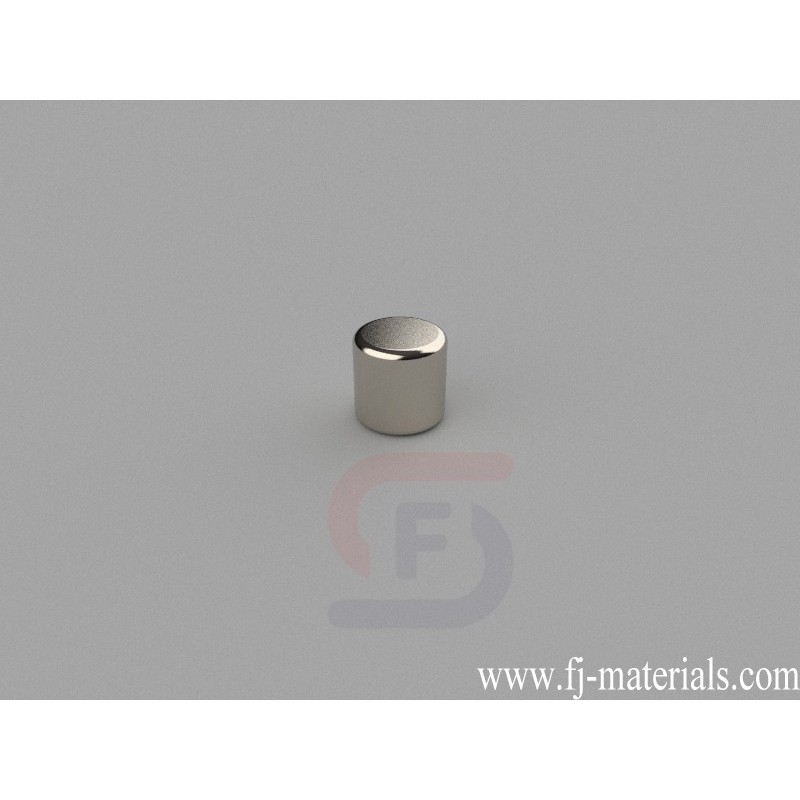

4mm dia. x 4mm thick Cylinder Magnets | D4x4mm
D4x4mm Neodymium Magnet, 4 x 4mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 2.32 lbs (1.06kg).
D4x4mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 4mm dia. x 4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.32 lbs (1.06kg). Magnetization direction: Axial (Poles on Flat Ends)
D4x4mm Neodymium Magnet, 4 x 4mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 2.32 lbs (1.06kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D4x4mm
Data sheet
- Item Number
- D4x4mm
- Material
- NdFeB
- Grade
- N42
- Size
- 4mm dia. x 4mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.377g
- Pull Force
- 2.32 lbs (1.06kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- B. 3.18-6.35mm
D4x4mm Neodymium Magnet, 4 x 4mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 2.32 lbs (1.06kg).
