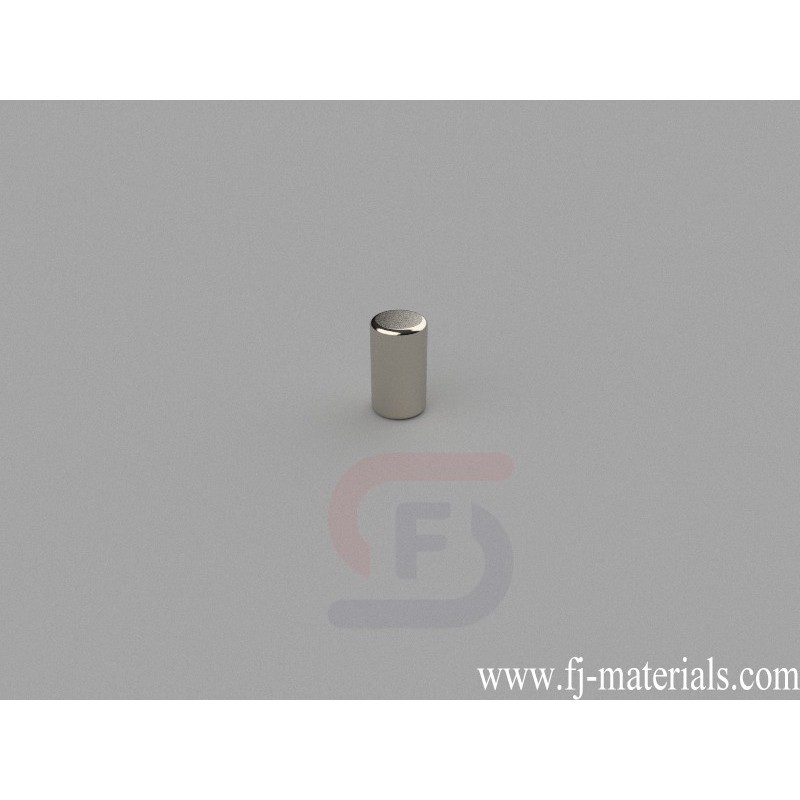

4mm dia. x 7mm thick Cylinder Magnets | D4x7mm

D4x7mm Neodymium Magnet, 4 x 7mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 3.07 lbs (1.40kg).

D4x7mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 4mm dia. x 7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.07 lbs (1.40kg). Magnetization direction: Axial (Poles on Flat Ends)

D4x7mm Neodymium Magnet, 4 x 7mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 3.07 lbs (1.40kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D4x7mm

Data sheet

Item Number
D4x7mm
Material
NdFeB
Grade
N42
Size
4mm dia. x 7mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.660g
Pull Force
3.07 lbs (1.40kg)
Diameter
B. 3.18-6.35mm
Thickness
C. 6.35-9.53mm
