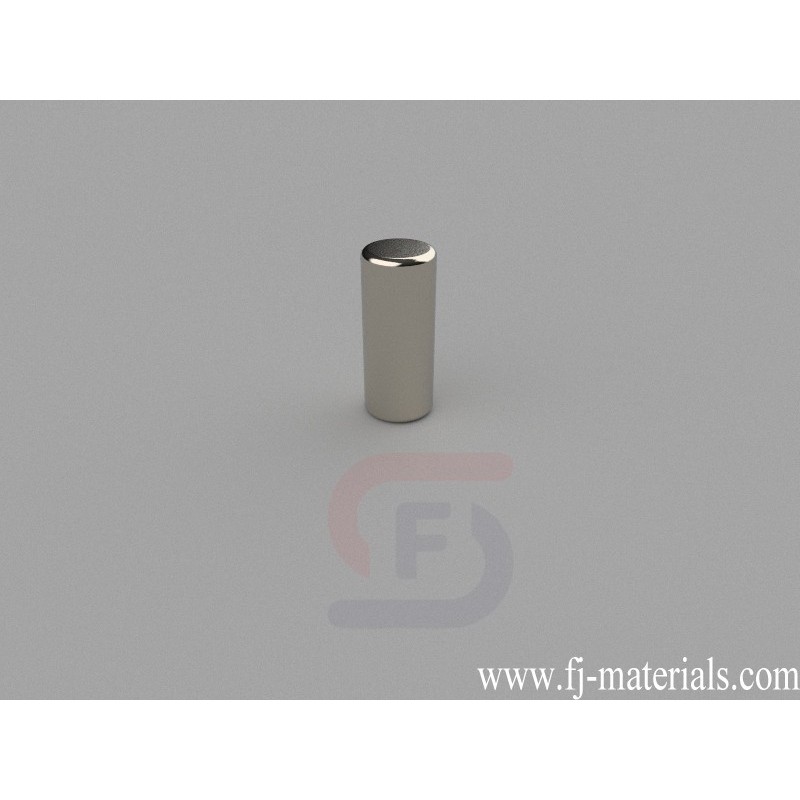

5mm dia. x 12mm thick Cylinder Magnets | D5x12mm
D5x12mm Neodymium Magnet, 5 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 5.50 lbs (2.50kg).
D5x12mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 5mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 5.50 lbs (2.50kg). Magnetization direction: Axial (Poles on Flat Ends)
D5x12mm Neodymium Magnet, 5 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 5.50 lbs (2.50kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D5x12mm
Data sheet
- Item Number
- D5x12mm
- Material
- NdFeB
- Grade
- N42
- Size
- 5mm dia. x 12mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.767g
- Pull Force
- 5.50 lbs (2.50kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- D. 9.53-12.7mm
D5x12mm Neodymium Magnet, 5 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 5.50 lbs (2.50kg).
