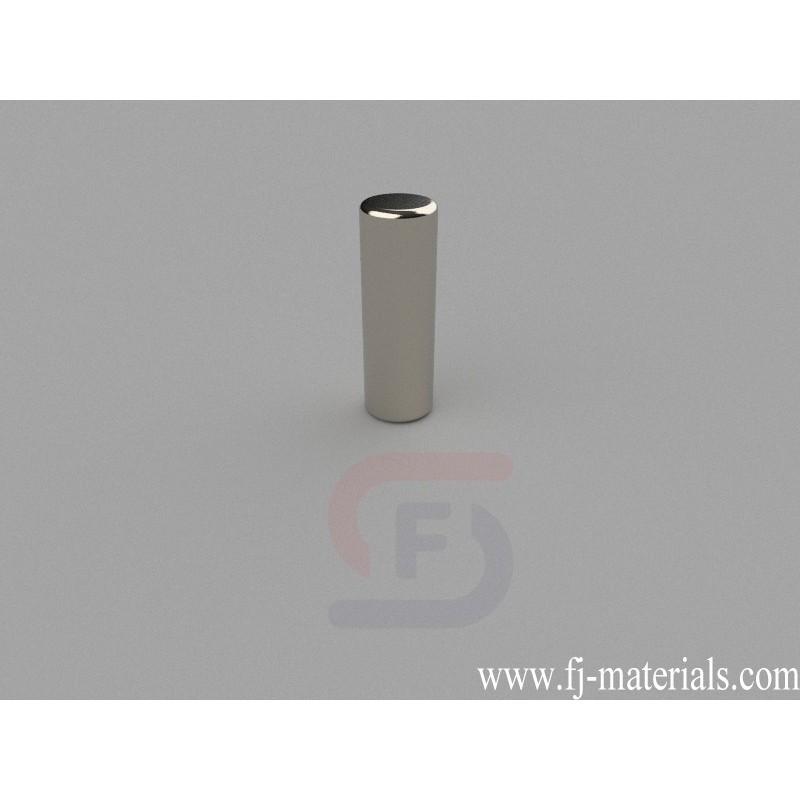

5mm dia. x 15mm thick Cylinder Magnets | D5x15mm
D5x15mm Neodymium Magnet, 5 x 15mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 6.15 lbs (2.79kg).
D5x15mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 5mm dia. x 15mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.15 lbs (2.79kg). Magnetization direction: Axial (Poles on Flat Ends)
D5x15mm Neodymium Magnet, 5 x 15mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 6.15 lbs (2.79kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D5x15mm
Data sheet
- Item Number
- D5x15mm
- Material
- NdFeB
- Grade
- N42
- Size
- 5mm dia. x 15mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.209g
- Pull Force
- 6.15 lbs (2.79kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- E. 12.7-19.05mm
D5x15mm Neodymium Magnet, 5 x 15mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 6.15 lbs (2.79kg).
