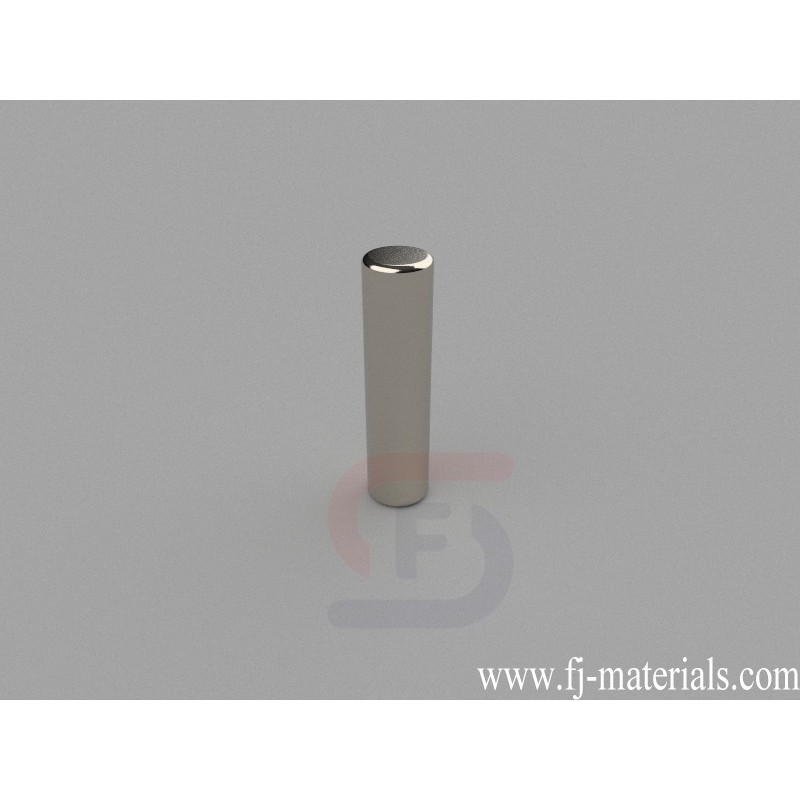

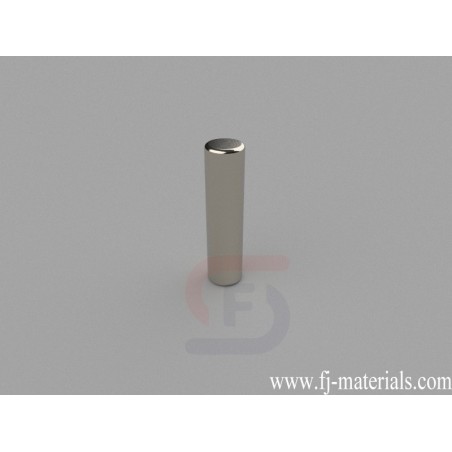

5mm dia. x 20mm thick Cylinder Magnets | D5x20mm

D5x20mm Neodymium Magnet, 5 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 7.10 lbs (3.23kg).

D5x20mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 5mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 7.10 lbs (3.23kg). Magnetization direction: Axial (Poles on Flat Ends)

D5x20mm Neodymium Magnet, 5 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 7.10 lbs (3.23kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D5x20mm

Data sheet

Item Number
D5x20mm
Material
NdFeB
Grade
N42
Size
5mm dia. x 20mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.945g
Pull Force
7.10 lbs (3.23kg)
Diameter
B. 3.18-6.35mm
Thickness
F. 19.05-25.4mm
