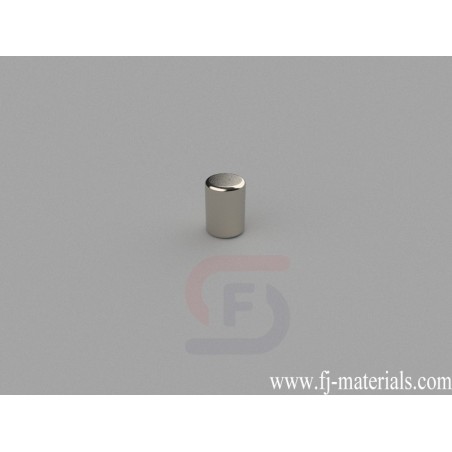

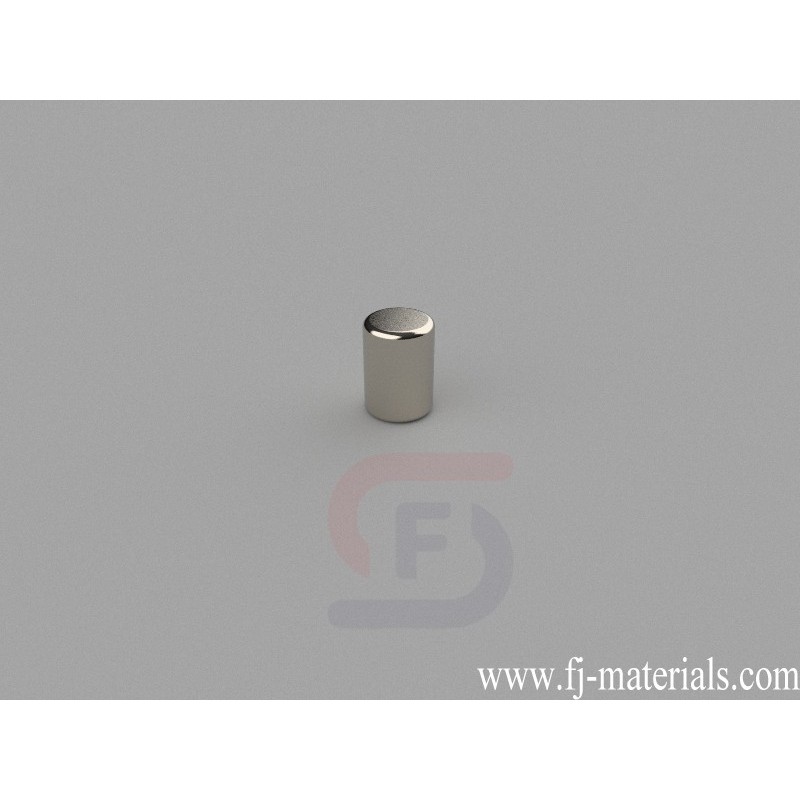

5mm dia. x 7mm thick Cylinder Magnets | D5x7mm
D5x7mm Neodymium Magnet, 5 x 7mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 4.20 lbs (1.91kg).
D5x7mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 5mm dia. x 7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.20 lbs (1.91kg). Magnetization direction: Axial (Poles on Flat Ends)
D5x7mm Neodymium Magnet, 5 x 7mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 4.20 lbs (1.91kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D5x7mm
Data sheet
- Item Number
- D5x7mm
- Material
- NdFeB
- Grade
- N42
- Size
- 5mm dia. x 7mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.031g
- Pull Force
- 4.20 lbs (1.91kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- C. 6.35-9.53mm
D5x7mm Neodymium Magnet, 5 x 7mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 4.20 lbs (1.91kg).
