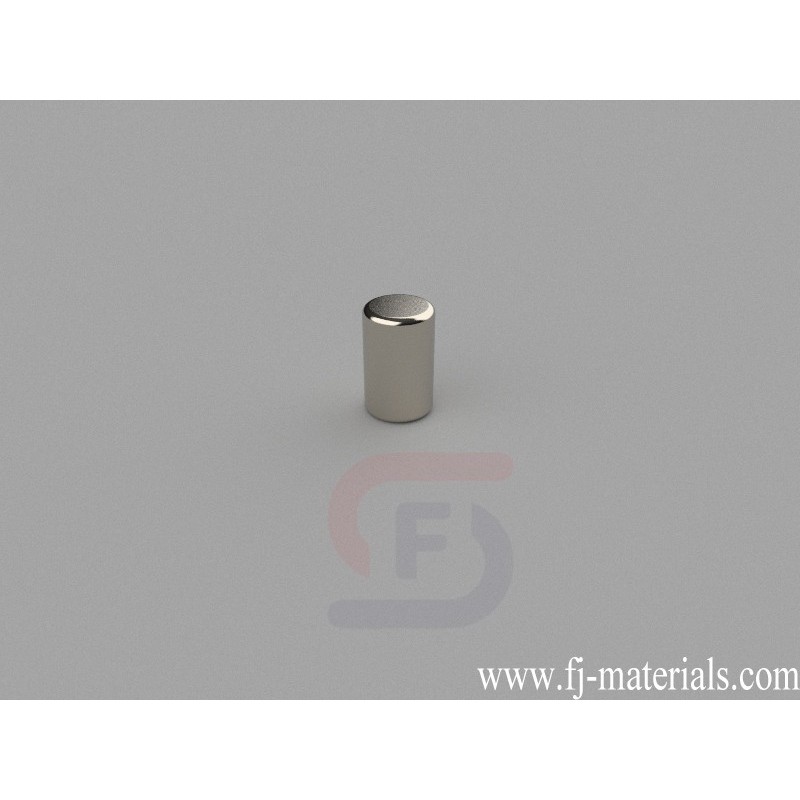

5mm dia. x 8mm thick Cylinder Magnets | D5x8mm

D5x8mm Neodymium Magnet, 5 x 8mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.49 lbs (2.04kg).

D5x8mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 5mm dia. x 8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.49 lbs (2.04kg). Magnetization direction: Axial (Poles on Flat Ends)

D5x8mm Neodymium Magnet, 5 x 8mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.49 lbs (2.04kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D5x8mm

Data sheet

Item Number
D5x8mm
Material
NdFeB
Grade
N42
Size
5mm dia. x 8mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.178g
Pull Force
4.49 lbs (2.04kg)
Diameter
B. 3.18-6.35mm
Thickness
C. 6.35-9.53mm
