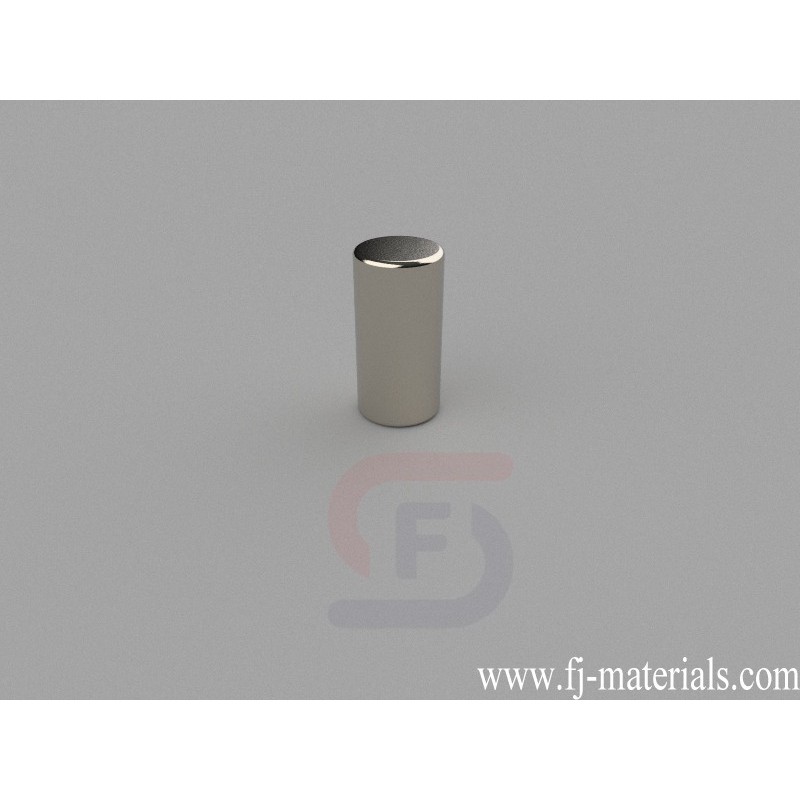

6mm dia. x 12mm thick Cylinder Magnets | D6x12mm

D6x12mm Neodymium Magnet, 6 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 7.10 lbs (3.23kg).

D6x12mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 6mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 7.10 lbs (3.23kg). Magnetization direction: Axial (Poles on Flat Ends)

D6x12mm Neodymium Magnet, 6 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 7.10 lbs (3.23kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D6x12mm

Data sheet

Item Number
D6x12mm
Material
NdFeB
Grade
N42
Size
6mm dia. x 12mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.545g
Pull Force
7.10 lbs (3.23kg)
Diameter
B. 3.18-6.35mm
Thickness
D. 9.53-12.7mm
