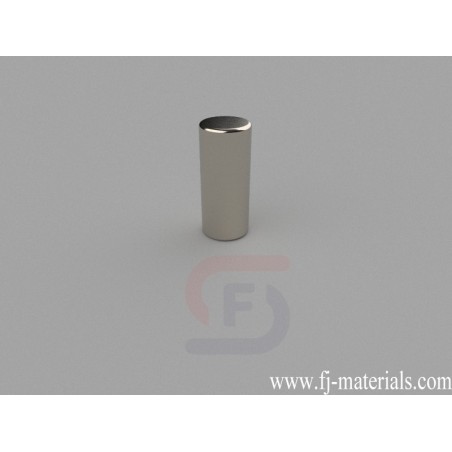

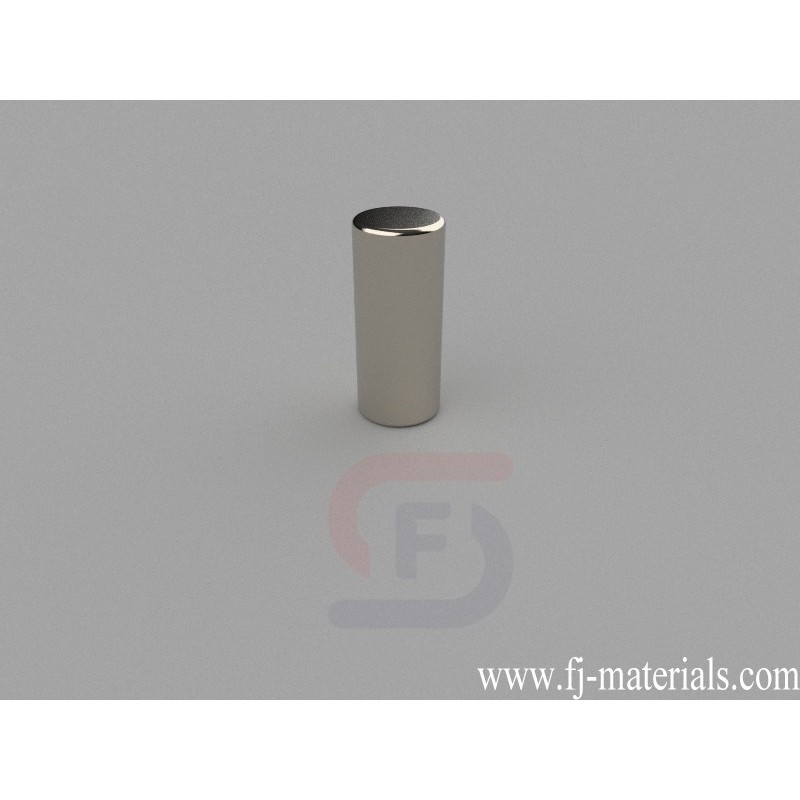

6mm dia. x 14mm thick Cylinder Magnets | D6x14mm
D6x14mm Neodymium Magnet, 6 x 14mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 14mm thick, Axial magnetized. Pull force is approximately 7.67 lbs (3.48kg).
D6x14mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 6mm dia. x 14mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 7.67 lbs (3.48kg). Magnetization direction: Axial (Poles on Flat Ends)
D6x14mm Neodymium Magnet, 6 x 14mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 14mm thick, Axial magnetized. Pull force is approximately 7.67 lbs (3.48kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D6x14mm
Data sheet
- Item Number
- D6x14mm
- Material
- NdFeB
- Grade
- N42
- Size
- 6mm dia. x 14mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.969g
- Pull Force
- 7.67 lbs (3.48kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- E. 12.7-19.05mm
D6x14mm Neodymium Magnet, 6 x 14mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 14mm thick, Axial magnetized. Pull force is approximately 7.67 lbs (3.48kg).
