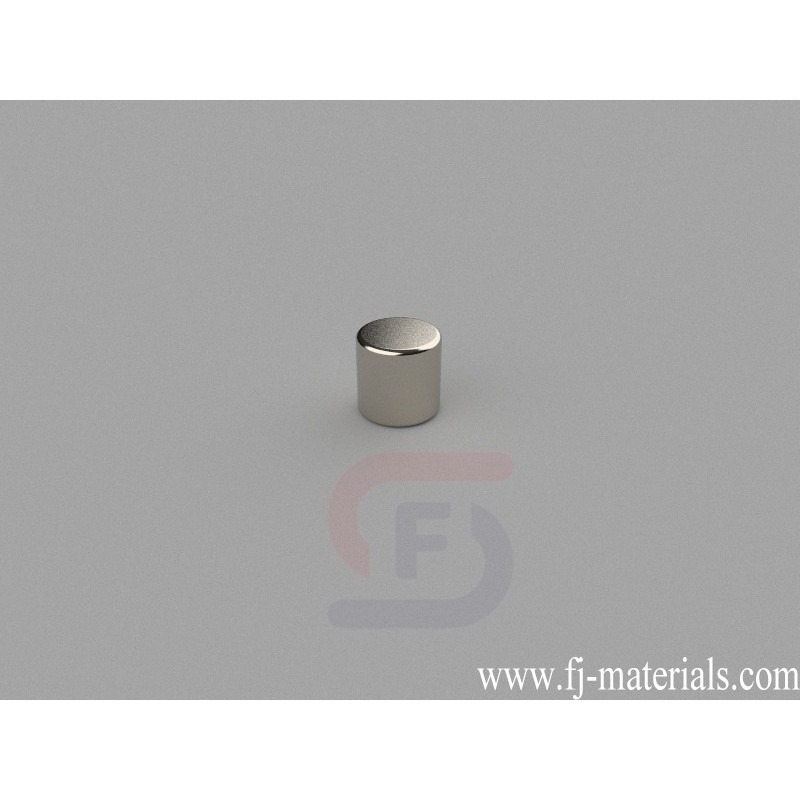

6mm dia. x 6mm thick Cylinder Magnets | D6x6mm

D6x6mm Neodymium Magnet, 6 x 6mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 5.02 lbs (2.28kg).

D6x6mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 6mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 5.02 lbs (2.28kg). Magnetization direction: Axial (Poles on Flat Ends)

D6x6mm Neodymium Magnet, 6 x 6mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 5.02 lbs (2.28kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D6x6mm

Data sheet

Item Number
D6x6mm
Material
NdFeB
Grade
N42
Size
6mm dia. x 6mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.272g
Pull Force
5.02 lbs (2.28kg)
Diameter
B. 3.18-6.35mm
Thickness
B. 3.18-6.35mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
