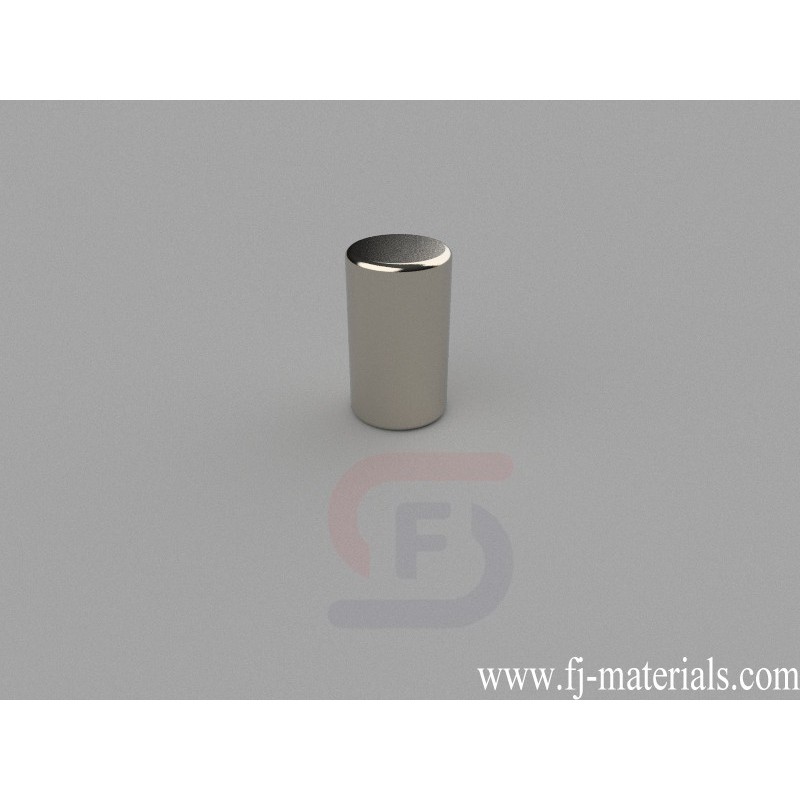

7mm dia. x 12mm thick Cylinder Magnets | D7x12mm

D7x12mm Neodymium Magnet, 7 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 8.81 lbs (4.00kg).

D7x12mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 7mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 8.81 lbs (4.00kg). Magnetization direction: Axial (Poles on Flat Ends)

D7x12mm Neodymium Magnet, 7 x 12mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 8.81 lbs (4.00kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D7x12mm

Data sheet

Item Number
D7x12mm
Material
NdFeB
Grade
N42
Size
7mm dia. x 12mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
3.464g
Pull Force
8.81 lbs (4.00kg)
Diameter
C. 6.35-9.53mm
Thickness
D. 9.53-12.7mm
