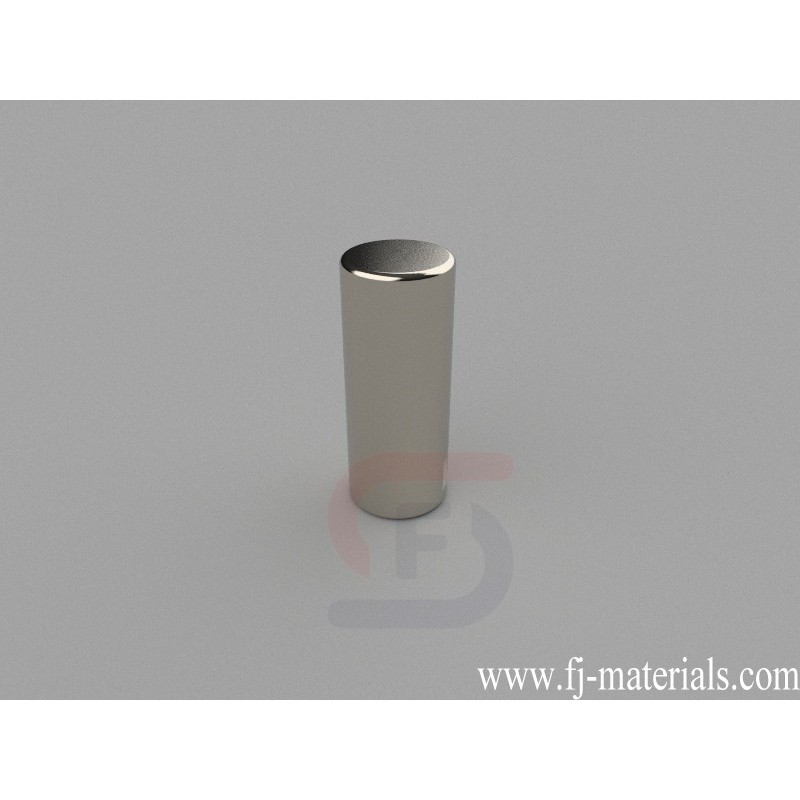

8mm dia. x 20mm thick Cylinder Magnets | D8x20mm
D8x20mm Neodymium Magnet, 8 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 13.71 lbs (6.23kg).
D8x20mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 13.71 lbs (6.23kg). Magnetization direction: Axial (Poles on Flat Ends)
D8x20mm Neodymium Magnet, 8 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 13.71 lbs (6.23kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8x20mm
Data sheet
- Item Number
- D8x20mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 7.540g
- Pull Force
- 13.71 lbs (6.23kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- F. 19.05-25.4mm
D8x20mm Neodymium Magnet, 8 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 13.71 lbs (6.23kg).
