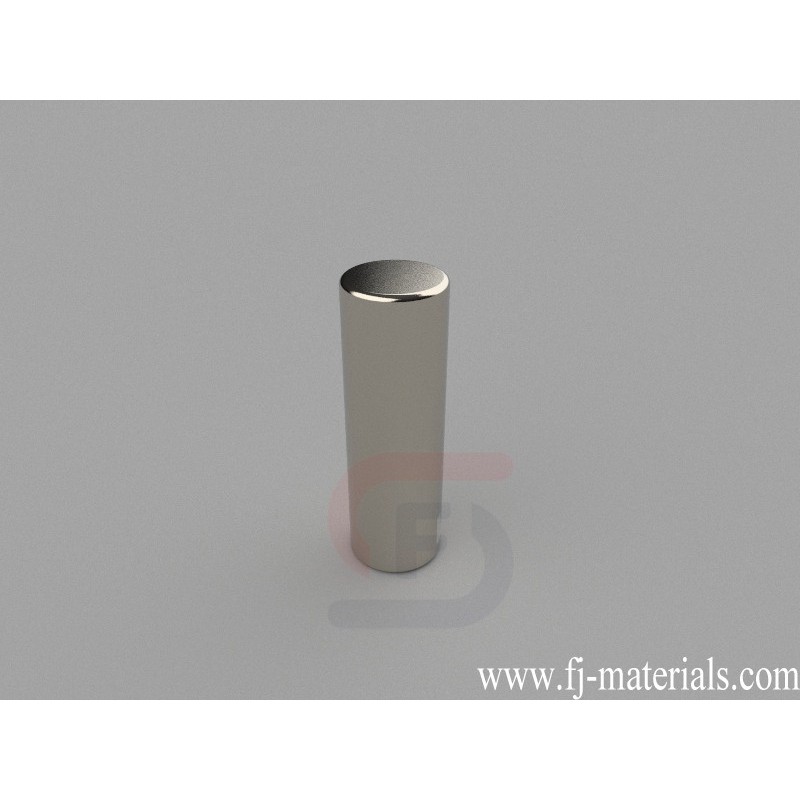

8mm dia. x 25mm thick Cylinder Magnets | D8x25mm

D8x25mm Neodymium Magnet, 8 x 25mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 15.32 lbs (6.97kg).

D8x25mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 25mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 15.32 lbs (6.97kg). Magnetization direction: Axial (Poles on Flat Ends)

D8x25mm Neodymium Magnet, 8 x 25mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 15.32 lbs (6.97kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D8x25mm

Data sheet

Item Number
D8x25mm
Material
NdFeB
Grade
N42
Size
8mm dia. x 25mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
9.425g
Pull Force
15.32 lbs (6.97kg)
Diameter
C. 6.35-9.53mm
Thickness
F. 19.05-25.4mm
