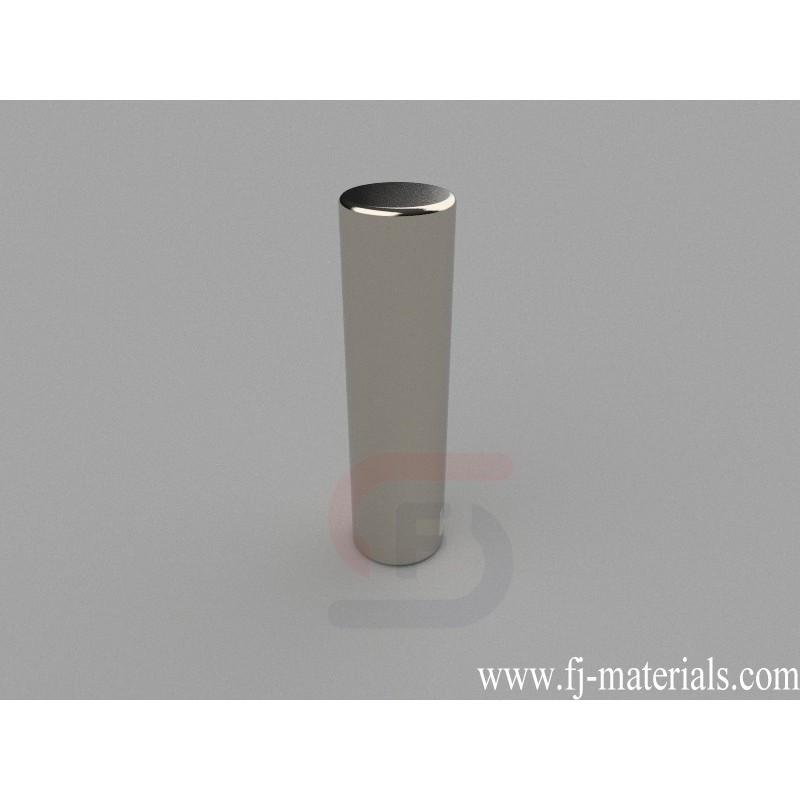

8mm dia. x 30mm thick Cylinder Magnets | D8x30mm
D8x30mm Neodymium Magnet, 8 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 16.79 lbs (7.63kg).
D8x30mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 16.79 lbs (7.63kg). Magnetization direction: Axial (Poles on Flat Ends)
D8x30mm Neodymium Magnet, 8 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 16.79 lbs (7.63kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8x30mm
Data sheet
- Item Number
- D8x30mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8mm dia. x 30mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 11.310g
- Pull Force
- 16.79 lbs (7.63kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- G. 25.4-50.8mm
D8x30mm Neodymium Magnet, 8 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 16.79 lbs (7.63kg).
