8mm dia. x 40mm thick Cylinder Magnets | D8x40mm

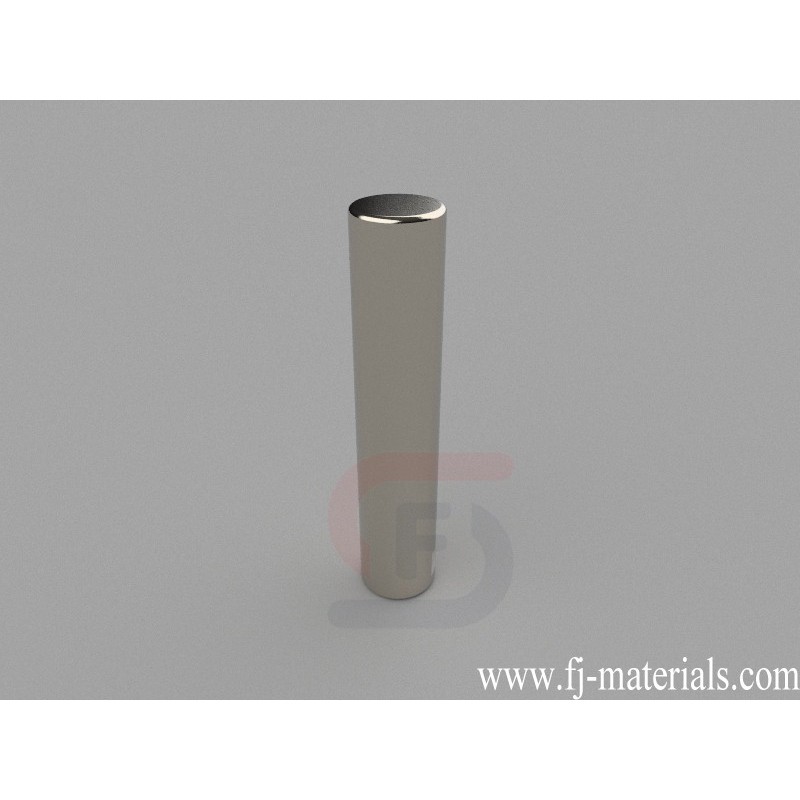

D8x40mm Neodymium Magnet, 8 x 40mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 19.38 lbs (8.81kg).

D8x40mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 40mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 19.38 lbs (8.81kg). Magnetization direction: Axial (Poles on Flat Ends)

D8x40mm Neodymium Magnet, 8 x 40mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 19.38 lbs (8.81kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D8x40mm

Data sheet

Item Number
D8x40mm
Material
NdFeB
Grade
N42
Size
8mm dia. x 40mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
15.080g
Pull Force
19.38 lbs (8.81kg)
Diameter
C. 6.35-9.53mm
Thickness
G. 25.4-50.8mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
