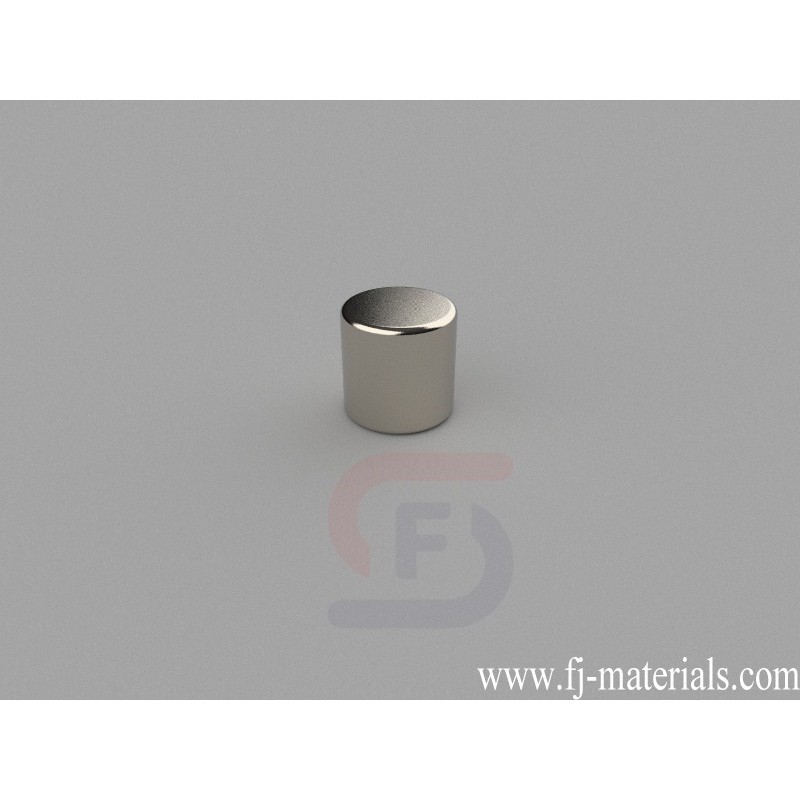

8mm dia. x 8mm thick Cylinder Magnets | D8x8mm

D8x8mm Neodymium Magnet, 8 x 8mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 8.67 lbs (3.94kg).

D8x8mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 8.67 lbs (3.94kg). Magnetization direction: Axial (Poles on Flat Ends)

D8x8mm Neodymium Magnet, 8 x 8mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 8.67 lbs (3.94kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D8x8mm

Data sheet

Item Number
D8x8mm
Material
NdFeB
Grade
N42
Size
8mm dia. x 8mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
3.016g
Pull Force
8.67 lbs (3.94kg)
Diameter
C. 6.35-9.53mm
Thickness
C. 6.35-9.53mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
