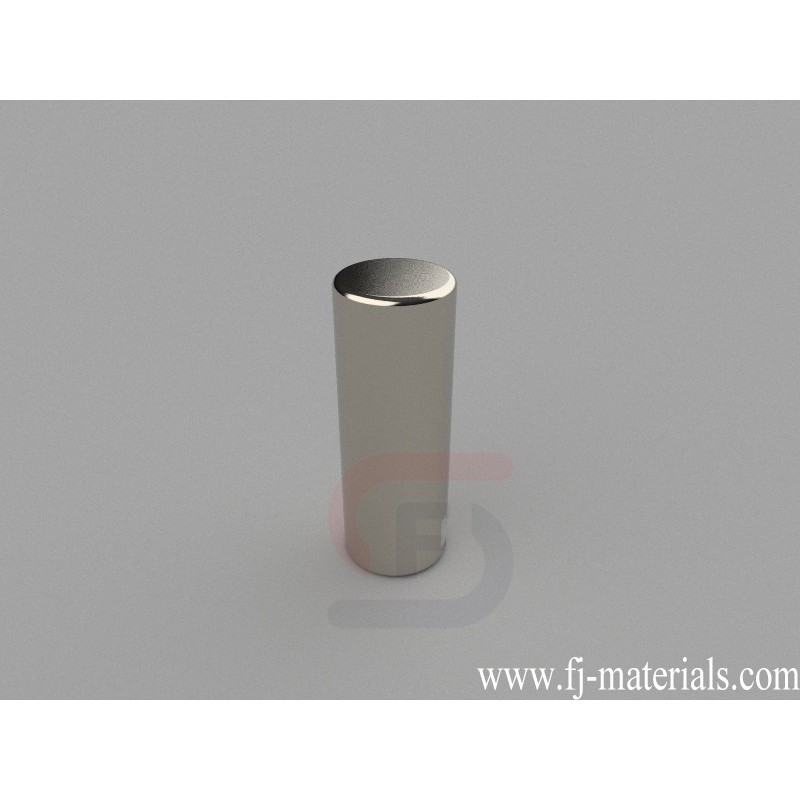

9mm dia. x 25mm thick Cylinder Magnets | D9x25mm

D9x25mm Neodymium Magnet, 9 x 25mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 18.07 lbs (8.21kg).

D9x25mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 9mm dia. x 25mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 18.07 lbs (8.21kg). Magnetization direction: Axial (Poles on Flat Ends)

D9x25mm Neodymium Magnet, 9 x 25mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 18.07 lbs (8.21kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D9x25mm

Data sheet

Item Number
D9x25mm
Material
NdFeB
Grade
N42
Size
9mm dia. x 25mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
11.928g
Pull Force
18.07 lbs (8.21kg)
Diameter
C. 6.35-9.53mm
Thickness
F. 19.05-25.4mm
