1/16 dia.x 1/16 inch thick Cylinder Magnets | D11

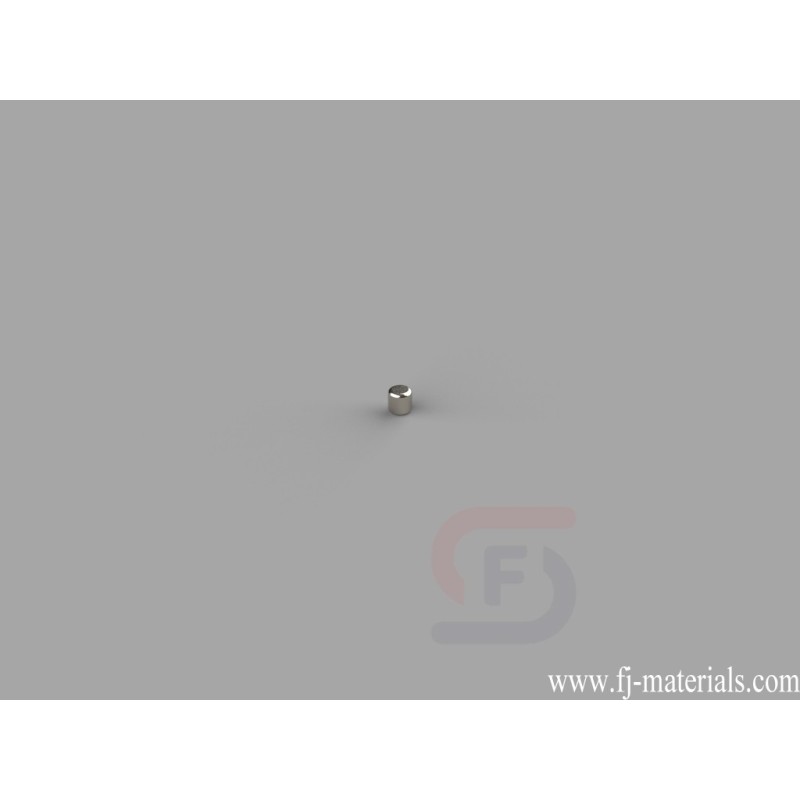

D11 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 1/16" thick, Axial magnetized. Pull force is approximately 0.10 lbs.
Yiwu Fenjiao E-commerce Firm supply D11 Neodymium Cylinder Magnets with high quality at competitive price.
D11 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 1/16" thick, Axial magnetized. Pull force is approximately 0.10 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D11
Data sheet
- Item Number
- D11
- Material
- NdFeB
- Grade
- N42
- Size
- 1/16" dia.x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.000831 oz. (0.0236 g)
- Pull Force
- 0.10 lbs
- Diameter
- A. 0.00-3.18mm
- Thickness
- A. 0.00-3.18mm
D11 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 1/16" thick, Axial magnetized. Pull force is approximately 0.10 lbs.
