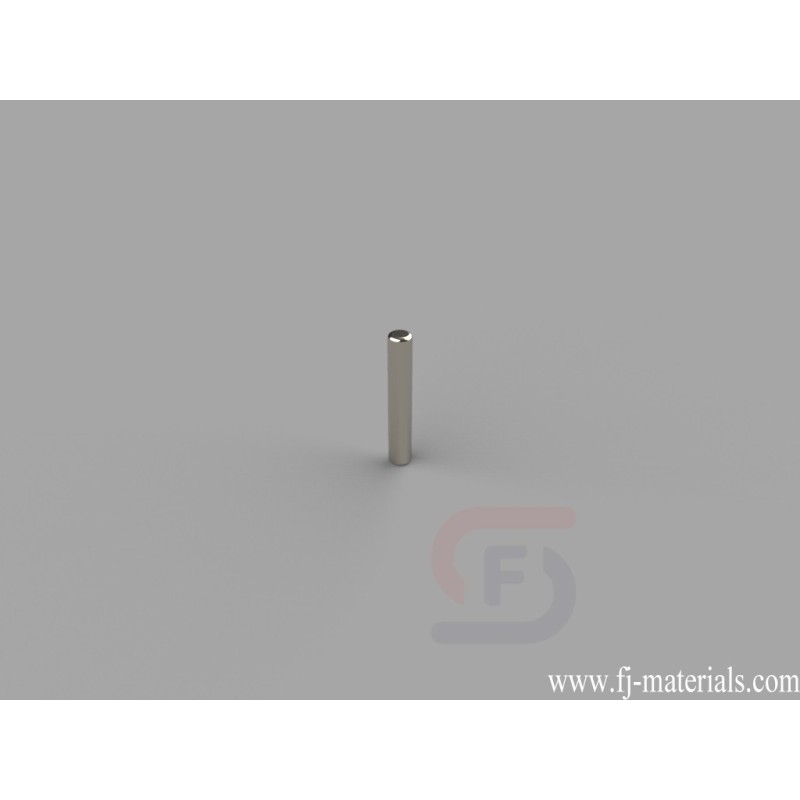

1/16 dia.x 3/8 inch thick Cylinder Magnets | D16
D16 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 3/8" thick, Axial magnetized. Pull force is approximately 0.19 lbs.
Yiwu Fenjiao E-commerce Firm supply D16 Neodymium Cylinder Magnets with high quality at competitive price.
D16 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 3/8" thick, Axial magnetized. Pull force is approximately 0.19 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D16
Data sheet
- Item Number
- D16
- Material
- NdFeB
- Grade
- N42
- Size
- 1/16" dia.x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.00499 oz. (0.141 g)
- Pull Force
- 0.19 lbs
- Diameter
- A. 0.00-3.18mm
- Thickness
- C. 6.35-9.53mm
D16 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 3/8" thick, Axial magnetized. Pull force is approximately 0.19 lbs.
