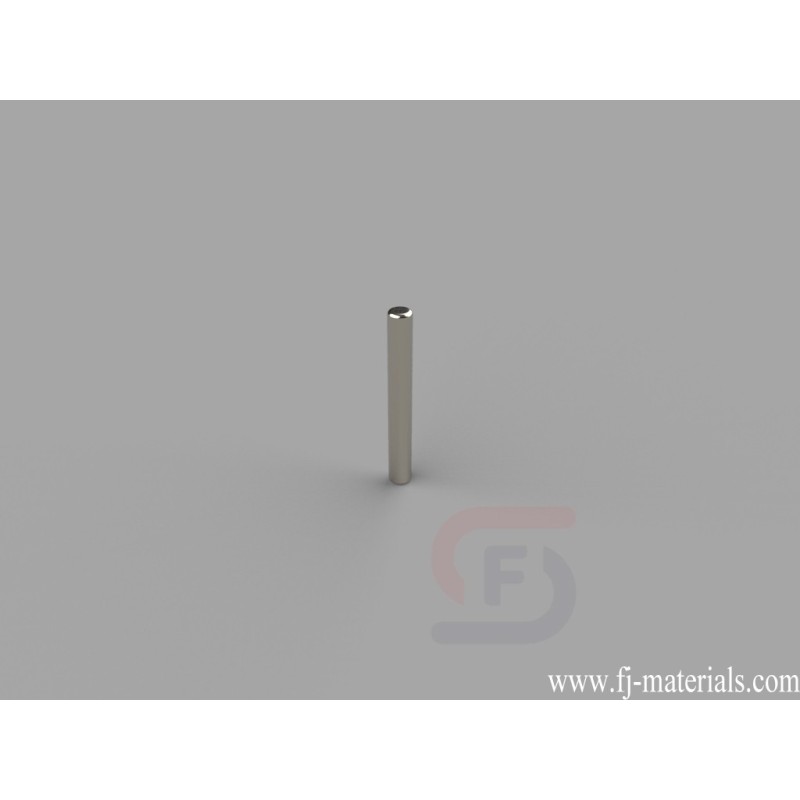

1/16 dia.x 1/2 inch thick Cylinder Magnets | D18
D18 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 1/2" thick, Axial magnetized. Pull force is approximately 0.20 lbs.
Yiwu Fenjiao E-commerce Firm supply D18 Neodymium Cylinder Magnets with high quality at competitive price.
D18 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 1/2" thick, Axial magnetized. Pull force is approximately 0.20 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D18
Data sheet
- Item Number
- D18
- Material
- NdFeB
- Grade
- N42
- Size
- 1/16" dia.x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.00665 oz. (0.189 g)
- Pull Force
- 0.20 lbs
- Diameter
- A. 0.00-3.18mm
- Thickness
- D. 9.53-12.7mm
D18 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia.x 1/2" thick, Axial magnetized. Pull force is approximately 0.20 lbs.
