3/16 dia. x 3/16 inch thick Cylinder Magnets | D33-N52

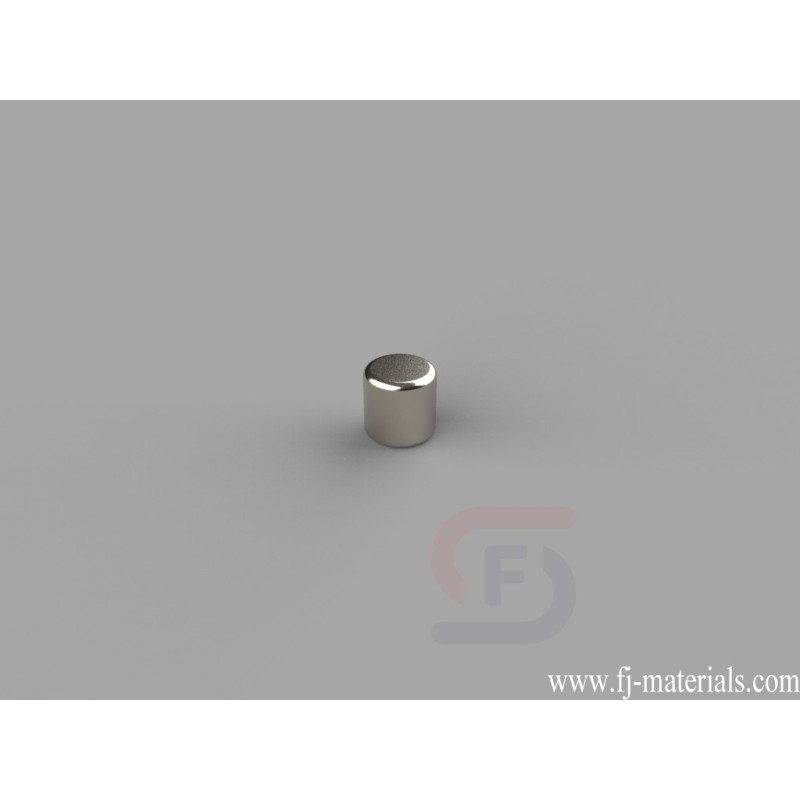

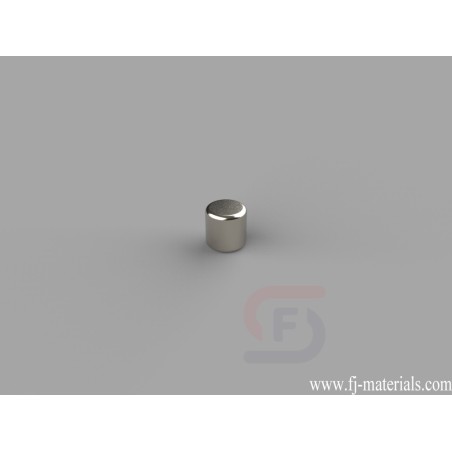

D33-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 2.28 lbs.
Yiwu Fenjiao E-commerce Firm supply D33-N52 Neodymium Cylinder Magnets with high quality at competitive price.
D33-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 2.28 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D33-N52
Data sheet
- Item Number
- D33-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 3/16" dia. x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0224 oz. (0.636 g)
- Pull Force
- 2.28 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- B. 3.18-6.35mm
D33-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 2.28 lbs.
