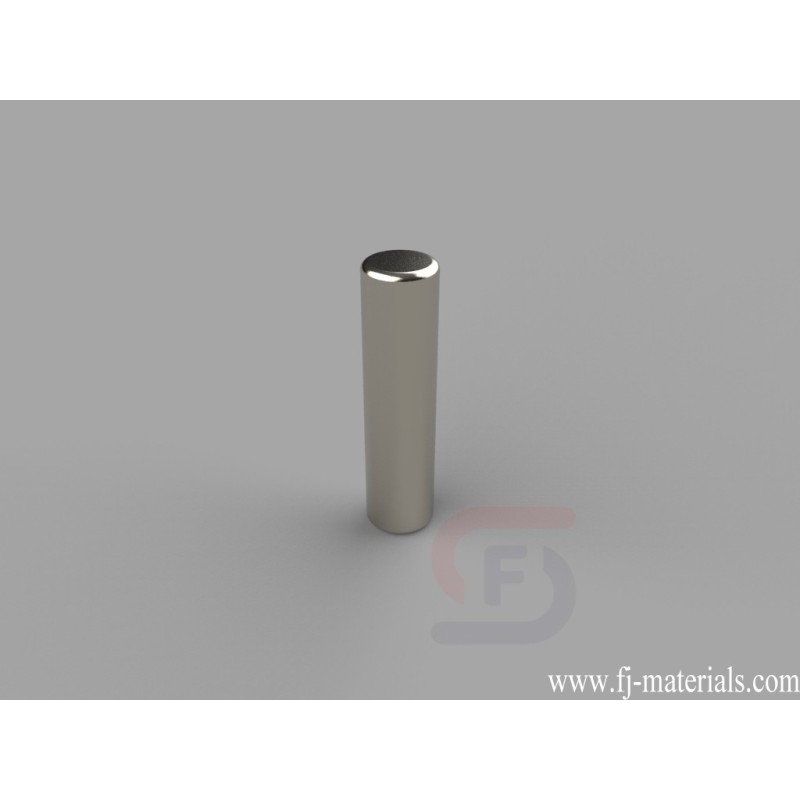

3/16 dia. x 3/4 inch thick Cylinder Magnets | D3C
D3C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 2.20 lbs.
Yiwu Fenjiao E-commerce Firm supply D3C Neodymium Cylinder Magnets with high quality at competitive price.
D3C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 2.20 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D3C
Data sheet
- Item Number
- D3C
- Material
- NdFeB
- Grade
- N42
- Size
- 3/16" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0898 oz. (2.55 g)
- Pull Force
- 2.20 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- E. 12.7-19.05mm
D3C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 2.20 lbs.
