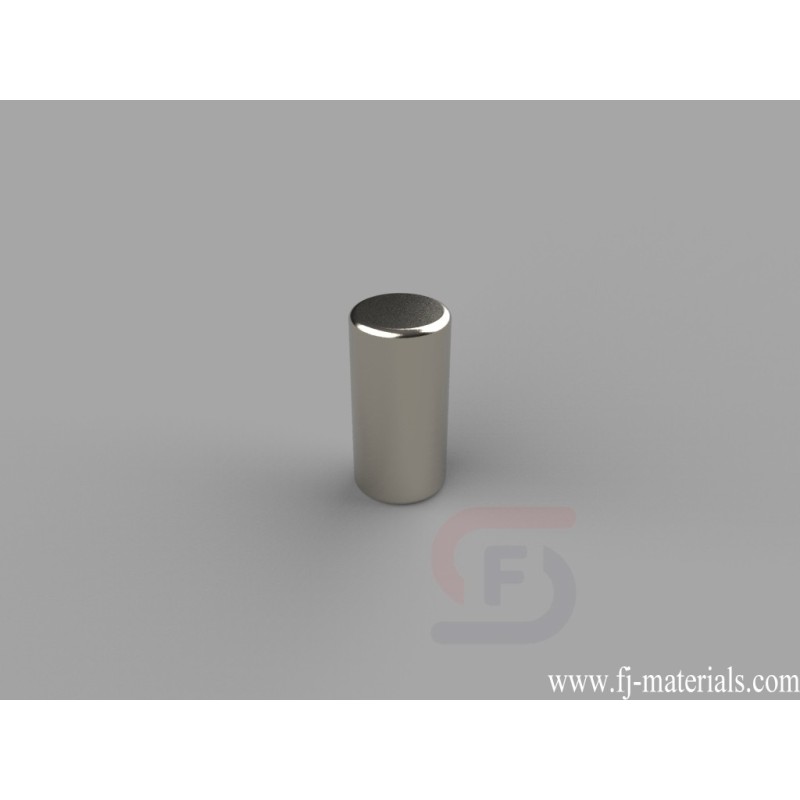

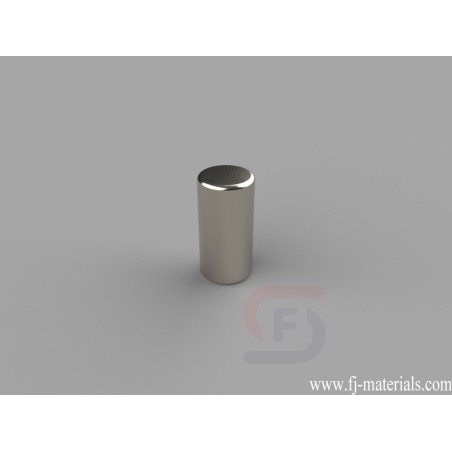

1/4 dia. x 1/2 inch thick Cylinder Magnets | D48
D48 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 3.87 lbs.
Yiwu Fenjiao E-commerce Firm supply D48 Neodymium Cylinder Magnets with high quality at competitive price.
D48 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 3.87 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D48
Data sheet
- Item Number
- D48
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" dia. x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.106 oz. (3.02 g)
- Pull Force
- 3.87 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- D. 9.53-12.7mm
D48 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 3.87 lbs.
