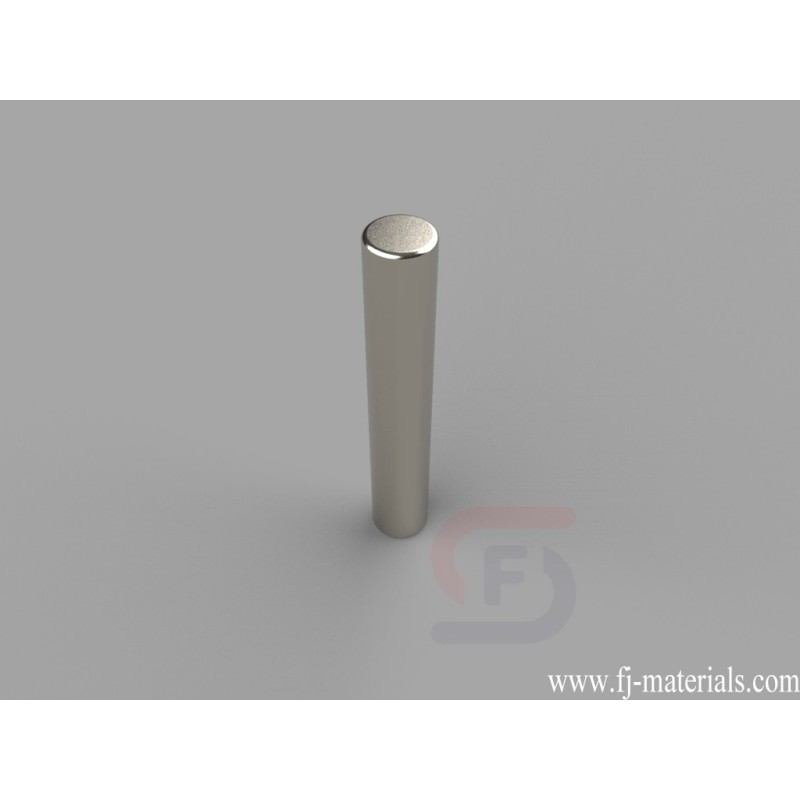

1/4 dia. x 1 1/2 inch thick Cylinder Magnets | D4X8
D4X8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1 1/2" thick, Axial magnetized. Pull force is approximately 4.20 lbs.
Yiwu Fenjiao E-commerce Firm supply D4X8 Neodymium Cylinder Magnets with high quality at competitive price.
D4X8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1 1/2" thick, Axial magnetized. Pull force is approximately 4.20 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D4X8
Data sheet
- Item Number
- D4X8
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" dia. x 1 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.319 oz. (9.05 g)
- Pull Force
- 4.20 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- G. 25.4-50.8mm
D4X8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1 1/2" thick, Axial magnetized. Pull force is approximately 4.20 lbs.
