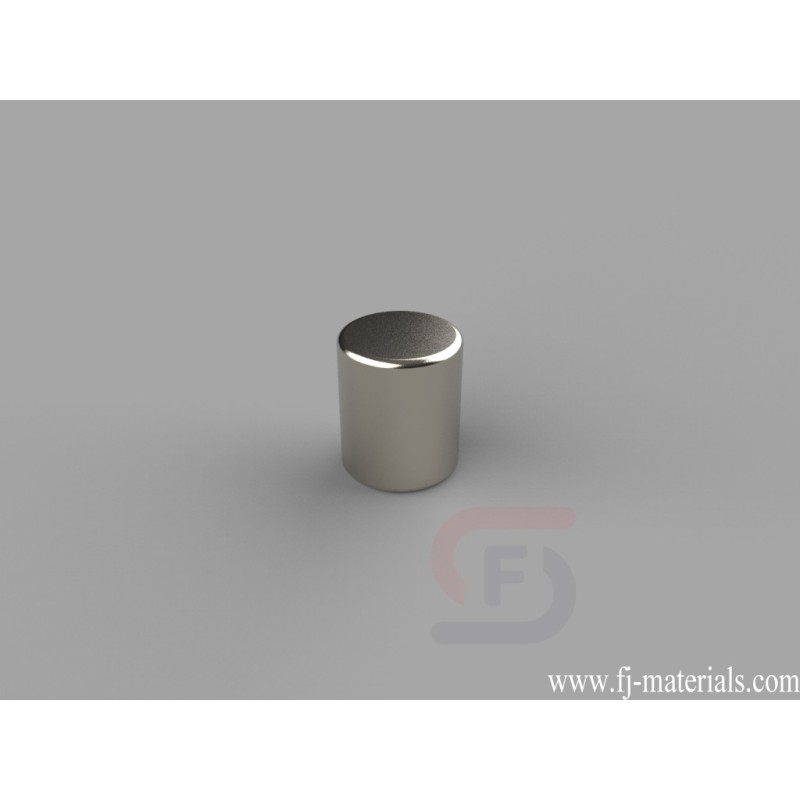

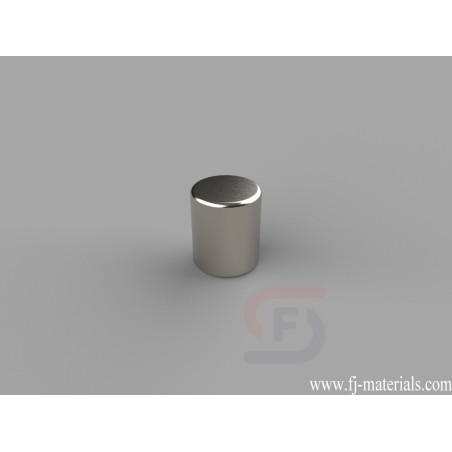

5/16 dia. x 3/8 inch thick Cylinder Magnets | D56

D56 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 5.76 lbs.

Yiwu Fenjiao E-commerce Firm supply D56 Neodymium Cylinder Magnets with high quality at competitive price.

D56 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 5.76 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D56

Data sheet

Item Number
D56
Material
NdFeB
Grade
N42
Size
5/16" dia. x 3/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.125 oz. (3.54 g)
Pull Force
5.76 lbs
Diameter
C. 6.35-9.53mm
Thickness
C. 6.35-9.53mm
