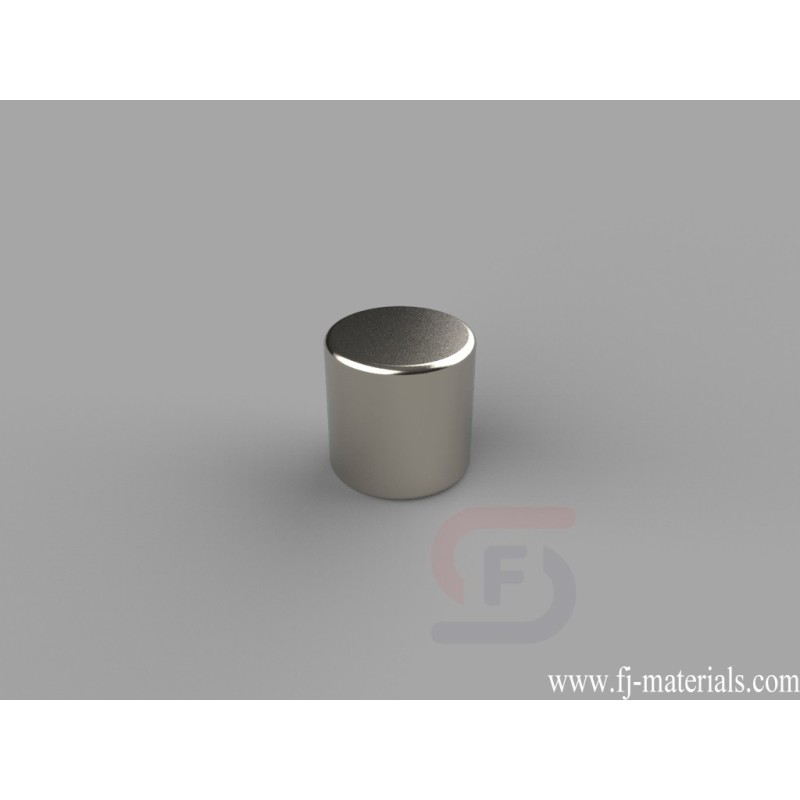

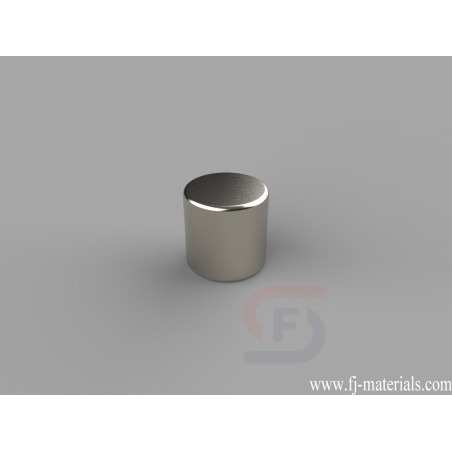

3/8 dia. x 3/8 inch thick Cylinder Magnets | D66-N52
D66-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 9.86 lbs.
Yiwu Fenjiao E-commerce Firm supply D66-N52 Neodymium Cylinder Magnets with high quality at competitive price.
D66-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 9.86 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D66-N52
Data sheet
- Item Number
- D66-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 3/8" dia. x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.180 oz. (5.09 g)
- Pull Force
- 9.86 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- C. 6.35-9.53mm
D66-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 9.86 lbs.
