3/8 dia. x 1/2 inch thick Cylinder Magnets | D68

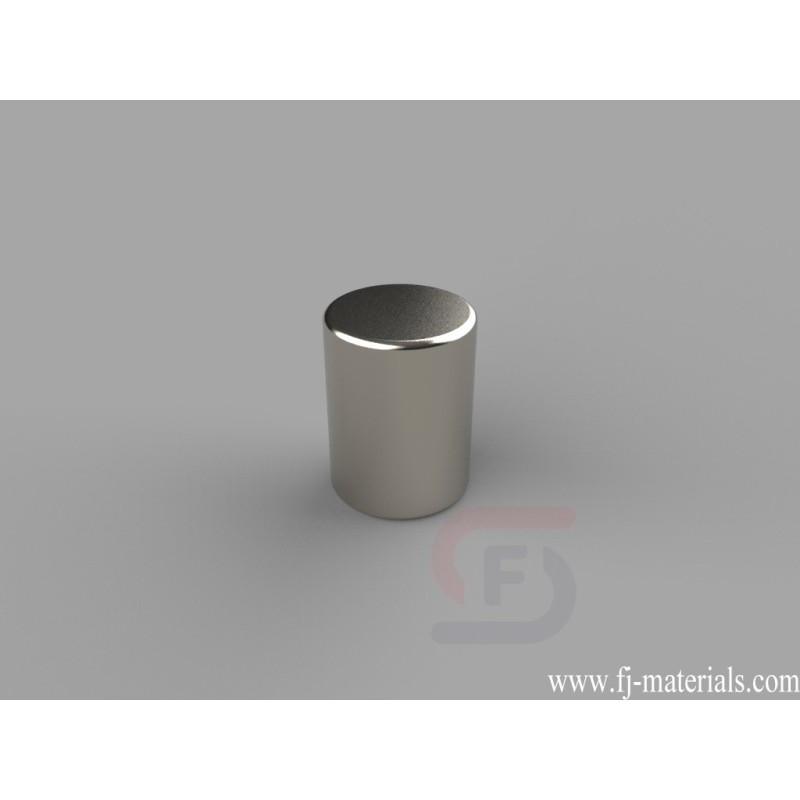

D68 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 8.50 lbs.
Yiwu Fenjiao E-commerce Firm supply D68 Neodymium Cylinder Magnets with high quality at competitive price.
D68 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 8.50 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D68
Data sheet
- Item Number
- D68
- Material
- NdFeB
- Grade
- N42
- Size
- 3/8" dia. x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.239 oz. (6.79 g)
- Pull Force
- 8.50 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- D. 9.53-12.7mm
D68 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 8.50 lbs.
