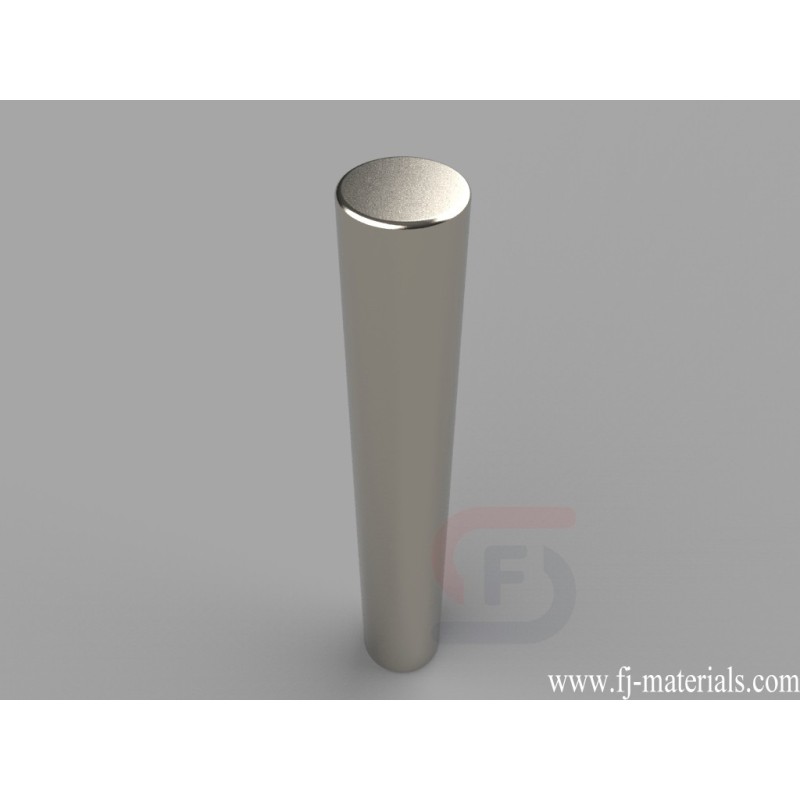

3/8 dia. x2 1/2 inch thick Cylinder Magnets | D6Y8
D6Y8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x2 1/2" thick, Axial magnetized. Pull force is approximately 9.33 lbs.
Yiwu Fenjiao E-commerce Firm supply D6Y8 Neodymium Cylinder Magnets with high quality at competitive price.
D6Y8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x2 1/2" thick, Axial magnetized. Pull force is approximately 9.33 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D6Y8
Data sheet
- Item Number
- D6Y8
- Material
- NdFeB
- Grade
- N42
- Size
- 3/8" dia. x2 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.197 oz. (33.9 g)
- Pull Force
- 9.33 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- H. 50.8-254mm
D6Y8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x2 1/2" thick, Axial magnetized. Pull force is approximately 9.33 lbs.
