7/16 dia.x 7/16 inch thick Cylinder Magnets | D77

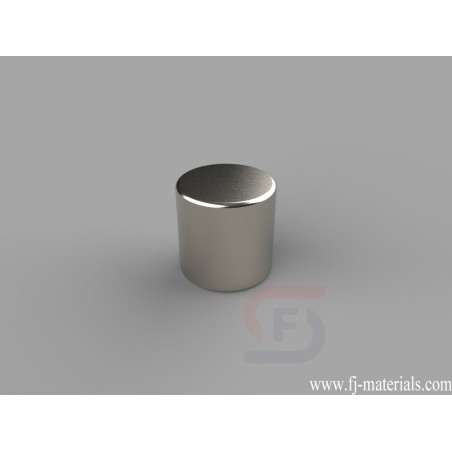

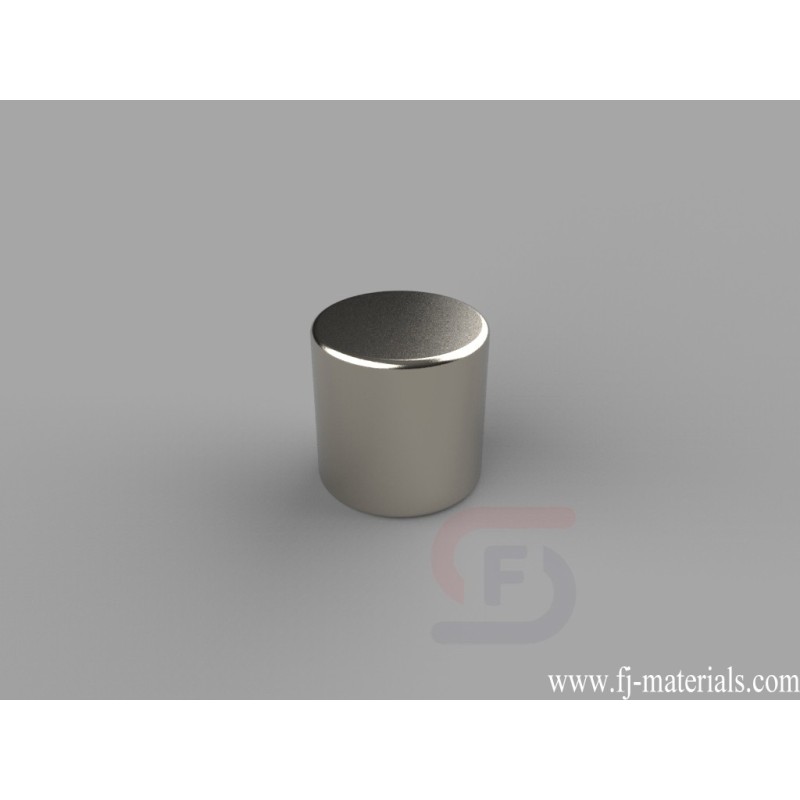

D77 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia.x 7/16" thick, Axial magnetized. Pull force is approximately 11.15 lbs.
Yiwu Fenjiao E-commerce Firm supply D77 Neodymium Cylinder Magnets with high quality at competitive price.
D77 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia.x 7/16" thick, Axial magnetized. Pull force is approximately 11.15 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D77
Data sheet
- Item Number
- D77
- Material
- NdFeB
- Grade
- N42
- Size
- 7/16" dia.x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.285 oz. (8.08 g)
- Pull Force
- 11.15 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- D. 9.53-12.7mm
D77 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia.x 7/16" thick, Axial magnetized. Pull force is approximately 11.15 lbs.
