7/16 dia.x 7/16 inch thick Cylinder Magnets | D77-N52

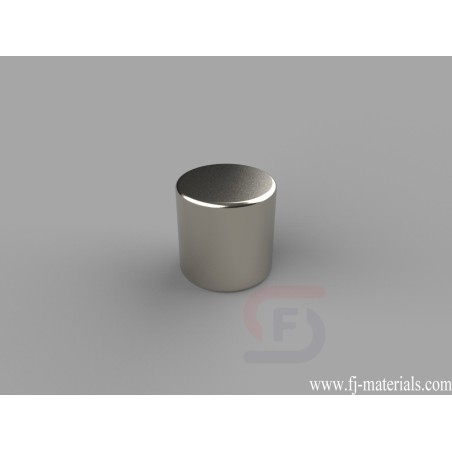

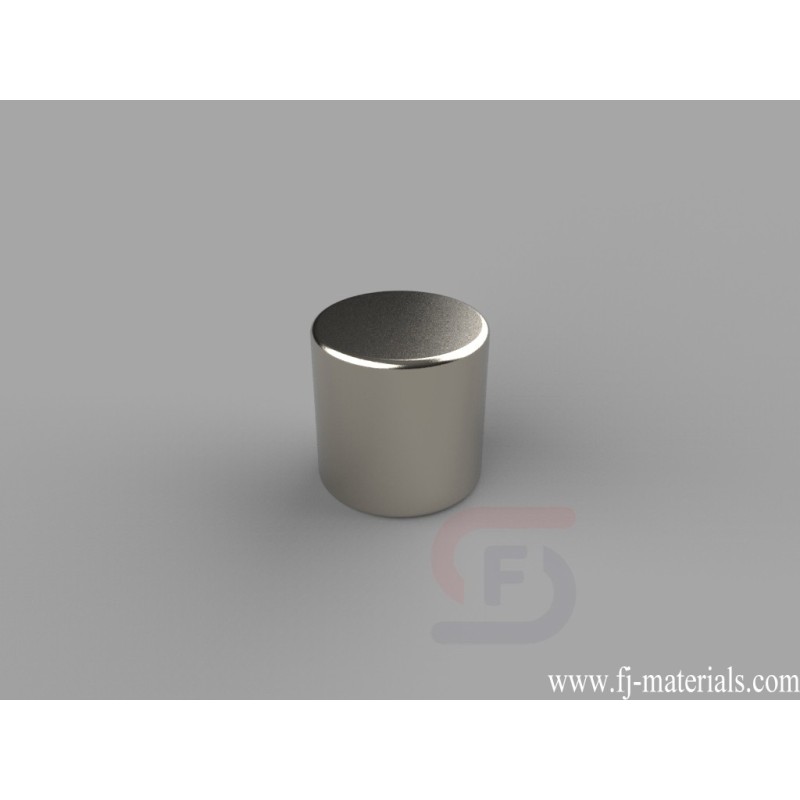

D77-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia.x 7/16" thick, Axial magnetized. Pull force is approximately 13.77 lbs.

Yiwu Fenjiao E-commerce Firm supply D77-N52 Neodymium Cylinder Magnets with high quality at competitive price.

D77-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia.x 7/16" thick, Axial magnetized. Pull force is approximately 13.77 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D77-N52

Data sheet

Item Number
D77-N52
Material
NdFeB
Grade
N52
Size
7/16" dia.x 7/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.285 oz. (8.08 g)
Pull Force
13.77 lbs
Diameter
D. 9.53-12.7mm
Thickness
D. 9.53-12.7mm
