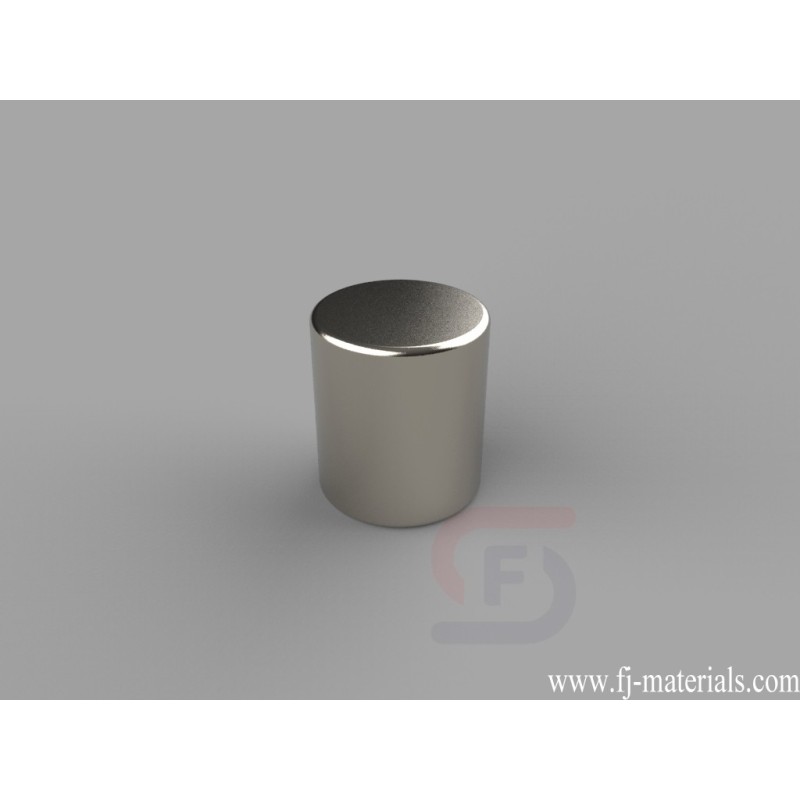

7/16 dia. x 1/2 inch thick Cylinder Magnets | D78-N52
D78-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 14.30 lbs.
Yiwu Fenjiao E-commerce Firm supply D78-N52 Neodymium Cylinder Magnets with high quality at competitive price.
D78-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 14.30 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D78-N52
Data sheet
- Item Number
- D78-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 7/16" dia. x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.33 oz. (9.24 g)
- Pull Force
- 14.30 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- D. 9.53-12.7mm
D78-N52 Neodymium Cylinder Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 14.30 lbs.
