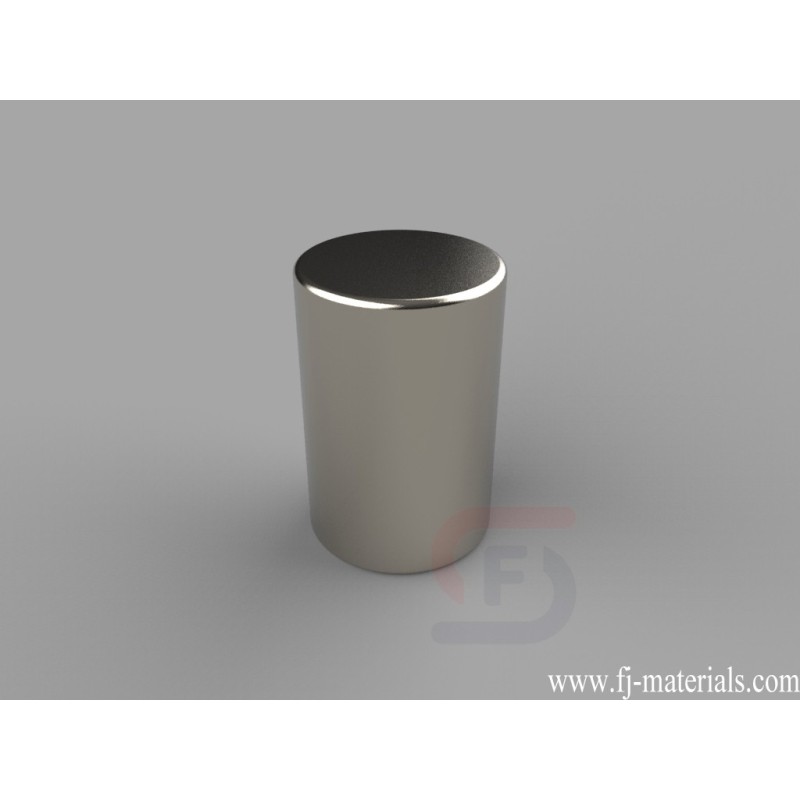

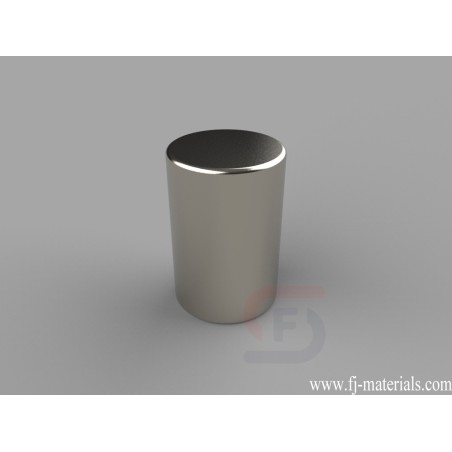

1/2 dia. x 3/4 inch thick Cylinder Magnets | D8C
D8C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 15.50 lbs.
Yiwu Fenjiao E-commerce Firm supply D8C Neodymium Cylinder Magnets with high quality at competitive price.
D8C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 15.50 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8C
Data sheet
- Item Number
- D8C
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.639 oz. (18.1 g)
- Pull Force
- 15.50 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- E. 12.7-19.05mm
D8C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 15.50 lbs.
