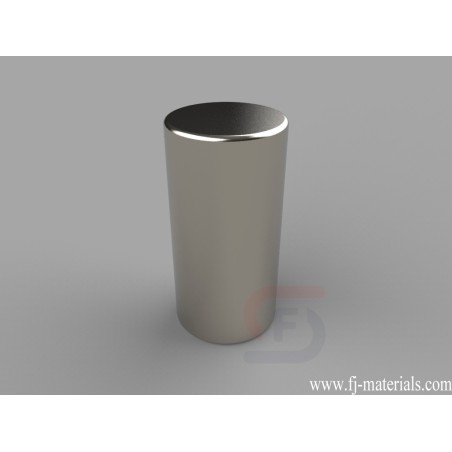

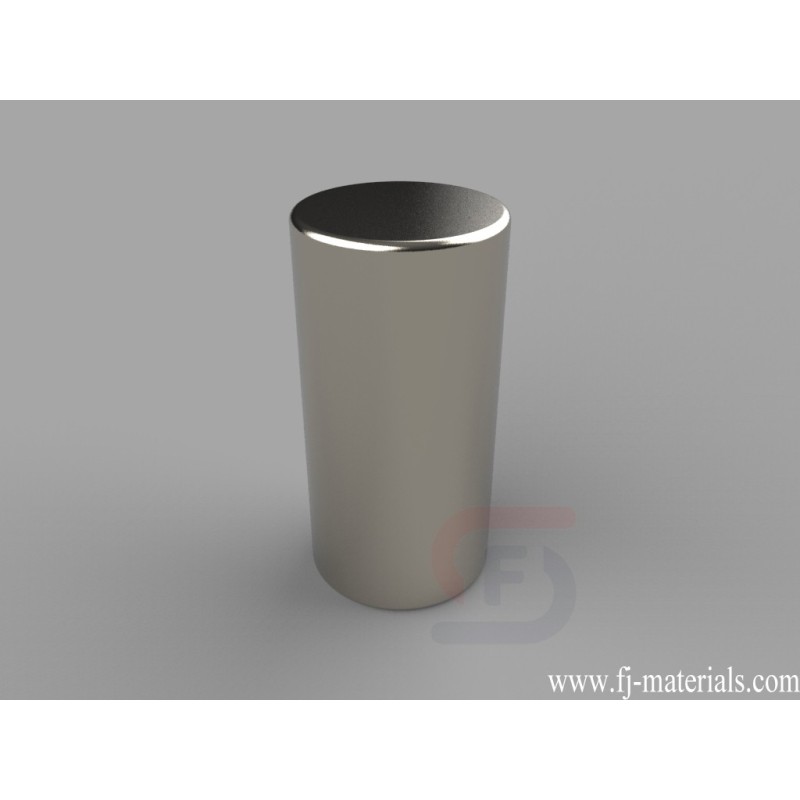

1/2 dia. x 1 inch thick Cylinder Magnets | D8X0DIA

D8X0DIA Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1" thick, Diametric magnetized. Pull force is approximately 22.33 lbs.

Yiwu Fenjiao E-commerce Firm supply D8X0DIA Neodymium Cylinder Magnets with high quality at competitive price.

D8X0DIA Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1" thick, Diametric magnetized. Pull force is approximately 22.33 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D8X0DIA

Data sheet

Item Number
D8X0DIA
Material
NdFeB
Grade
N42
Size
1/2" dia. x 1" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Diametric
Weight
0.851 oz. (24.1 g)
Pull Force
22.33 lbs
Diameter
D. 9.53-12.7mm
Thickness
F. 19.05-25.4mm
