1/2 dia.x 1 1/2 inch thick Cylinder Magnets | D8X8

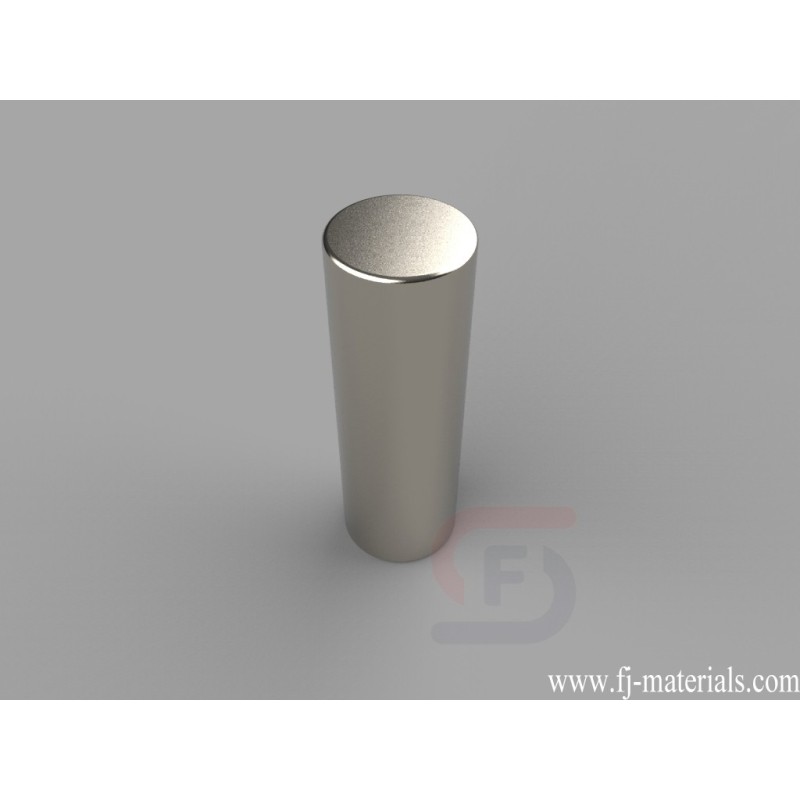

D8X8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia.x 1 1/2" thick, Axial magnetized. Pull force is approximately 16.85 lbs.
Yiwu Fenjiao E-commerce Firm supply D8X8 Neodymium Cylinder Magnets with high quality at competitive price.
D8X8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia.x 1 1/2" thick, Axial magnetized. Pull force is approximately 16.85 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8X8
Data sheet
- Item Number
- D8X8
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" dia.x 1 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.28 oz. (36.2 g)
- Pull Force
- 16.85 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- G. 25.4-50.8mm
D8X8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia.x 1 1/2" thick, Axial magnetized. Pull force is approximately 16.85 lbs.
