1/2 dia. x 3 inch thick Cylinder Magnets | D8Z0

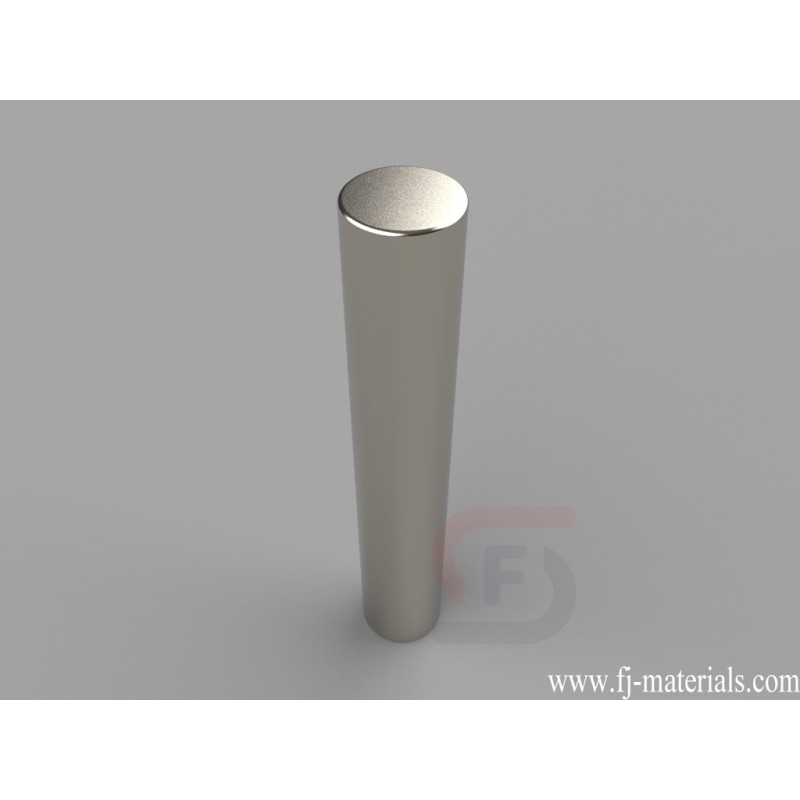

D8Z0 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3" thick, Axial magnetized. Pull force is approximately 17.35 lbs.
Yiwu Fenjiao E-commerce Firm supply D8Z0 Neodymium Cylinder Magnets with high quality at competitive price.
D8Z0 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3" thick, Axial magnetized. Pull force is approximately 17.35 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8Z0
Data sheet
- Item Number
- D8Z0
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" dia. x 3" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.55 oz. (72.4 g)
- Pull Force
- 17.35 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- H. 50.8-254mm
D8Z0 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3" thick, Axial magnetized. Pull force is approximately 17.35 lbs.
