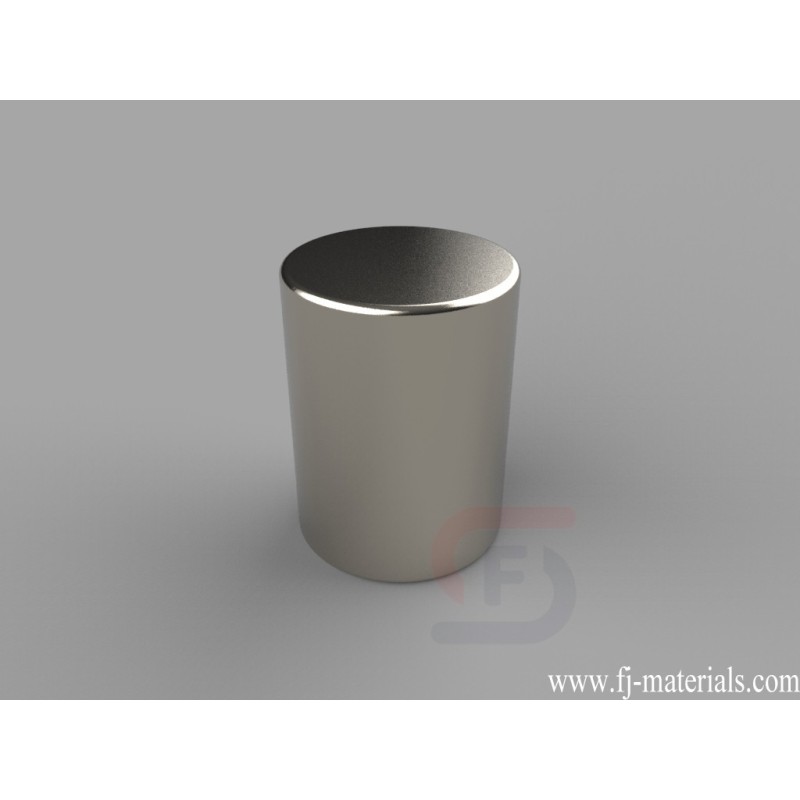

9/16 dia. x 3/4 inch thick Cylinder Magnets | D9C
D9C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 20.30 lbs.
Yiwu Fenjiao E-commerce Firm supply D9C Neodymium Cylinder Magnets with high quality at competitive price.
D9C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 20.30 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D9C
Data sheet
- Item Number
- D9C
- Material
- NdFeB
- Grade
- N42
- Size
- 9/16" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.808 oz. (22.91 g)
- Pull Force
- 20.30 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- E. 12.7-19.05mm
D9C Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 20.30 lbs.
