3/4 dia. x 1 1/2 inch thick Cylinder Magnets | DCX8

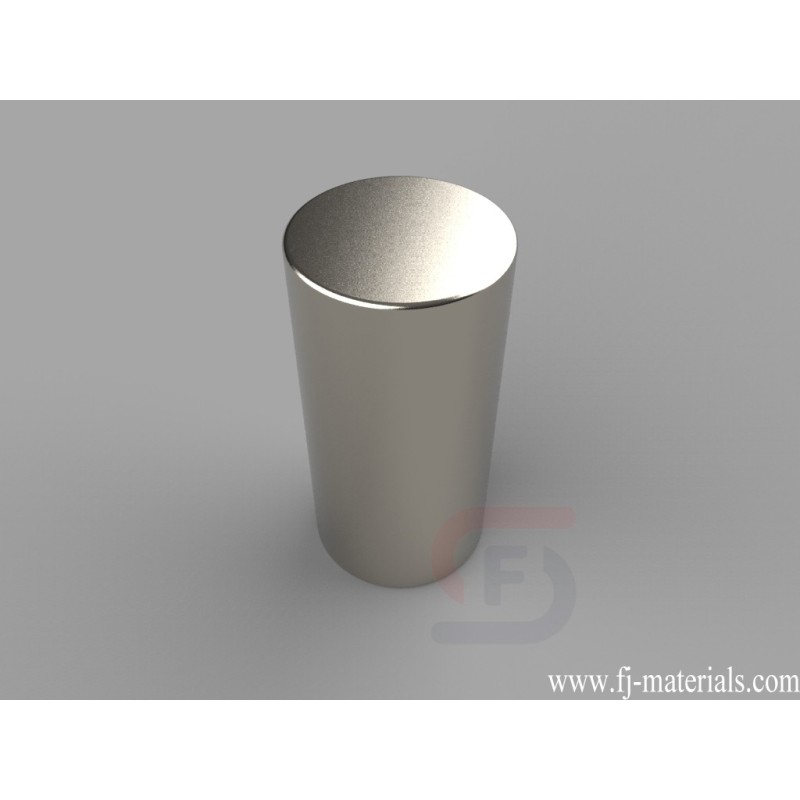

DCX8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1 1/2" thick, Axial magnetized. Pull force is approximately 37.70 lbs.
Yiwu Fenjiao E-commerce Firm supply DCX8 Neodymium Cylinder Magnets with high quality at competitive price.
DCX8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1 1/2" thick, Axial magnetized. Pull force is approximately 37.70 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DCX8
Data sheet
- Item Number
- DCX8
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" dia. x 1 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.87 oz. (81.5 g)
- Pull Force
- 37.70 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- G. 25.4-50.8mm
DCX8 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1 1/2" thick, Axial magnetized. Pull force is approximately 37.70 lbs.
