2/10 dia. x 1/4 inch thick Cylinder Magnets | DH24

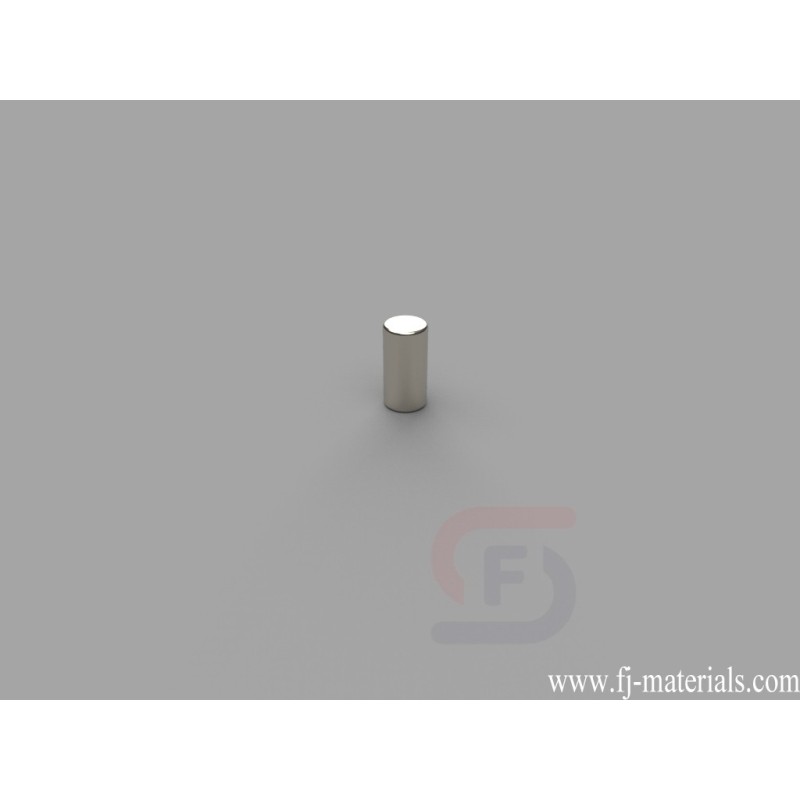

DH24 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 2.25 lbs.
Yiwu Fenjiao E-commerce Firm supply DH24 Neodymium Cylinder Magnets with high quality at competitive price.
DH24 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 2.25 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DH24
Data sheet
- Item Number
- DH24
- Material
- NdFeB
- Grade
- N42
- Size
- 2/10" dia. x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.034 oz. (0.965 g)
- Pull Force
- 2.25 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- B. 3.18-6.35mm
DH24 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 2.25 lbs.
