2/10 dia. x 3/8 inch thick Cylinder Magnets | DH26

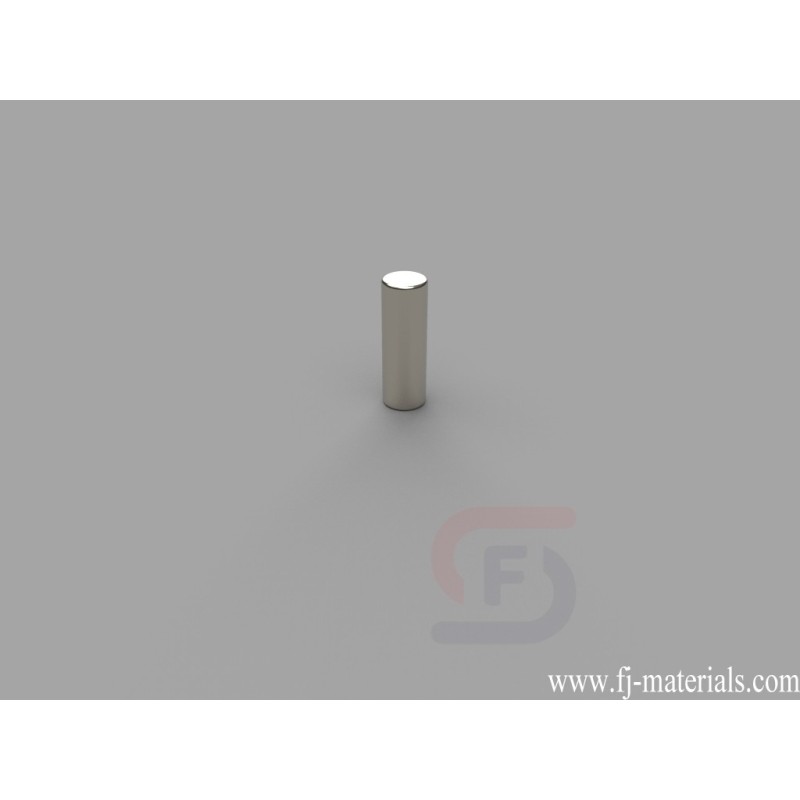

DH26 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 2.31 lbs.
Yiwu Fenjiao E-commerce Firm supply DH26 Neodymium Cylinder Magnets with high quality at competitive price.
DH26 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 2.31 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DH26
Data sheet
- Item Number
- DH26
- Material
- NdFeB
- Grade
- N42
- Size
- 2/10" dia. x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.051 oz. (1.45 g)
- Pull Force
- 2.31 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- C. 6.35-9.53mm
DH26 Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 2.31 lbs.
