1 dia. x 1 inch thick Cylinder Magnets | DX0X0DIA

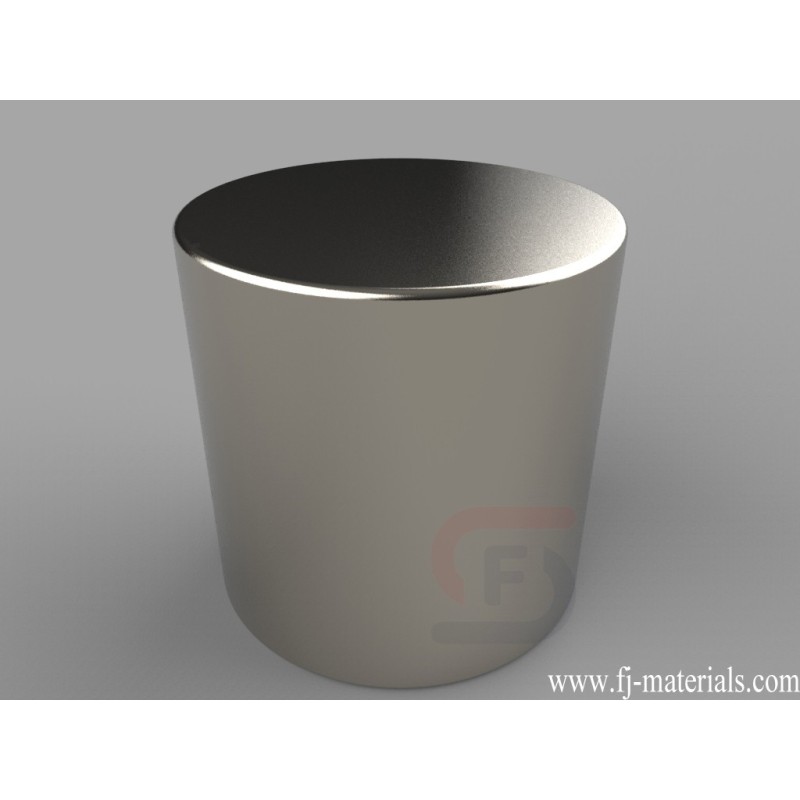

DX0X0DIA Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1" thick, Diametric magnetized. Pull force is approximately 45.86 lbs.
Yiwu Fenjiao E-commerce Firm supply DX0X0DIA Neodymium Cylinder Magnets with high quality at competitive price.
DX0X0DIA Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1" thick, Diametric magnetized. Pull force is approximately 45.86 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX0X0DIA
Data sheet
- Item Number
- DX0X0DIA
- Material
- NdFeB
- Grade
- N42
- Size
- 1" dia. x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Diametric
- Weight
- 3.41 oz. (96.5 g)
- Pull Force
- 45.86 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- F. 19.05-25.4mm
DX0X0DIA Neodymium Cylinder Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1" thick, Diametric magnetized. Pull force is approximately 45.86 lbs.
