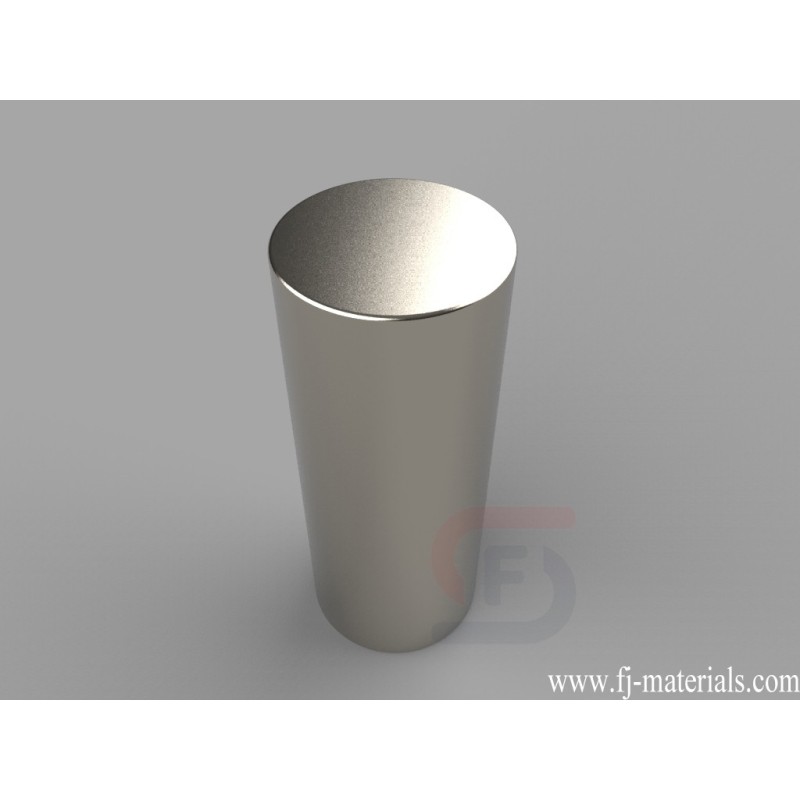

1 dia. x 2 1/2 inch thick Cylinder Magnets | DX0Y8
DX0Y8 Neodymium Magnets, 1" dia. x 2 1/2" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 2 1/2" thick, Axial magnetized. Pull force is approximately 70.00 lbs.
DX0Y8 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1" dia. x 2 1/2" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 70.00 lbs. Magnetization direction: Axial (Poles on Flat Ends)
DX0Y8 Neodymium Magnets, 1" dia. x 2 1/2" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 2 1/2" thick, Axial magnetized. Pull force is approximately 70.00 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX0Y8
Data sheet
- Item Number
- DX0Y8
- Material
- NdFeB
- Grade
- N42
- Size
- 1" dia. x 2 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 8.51 oz. (241 g)
- Pull Force
- 70.00 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- H. 50.8-254mm
DX0Y8 Neodymium Magnets, 1" dia. x 2 1/2" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 2 1/2" thick, Axial magnetized. Pull force is approximately 70.00 lbs.
