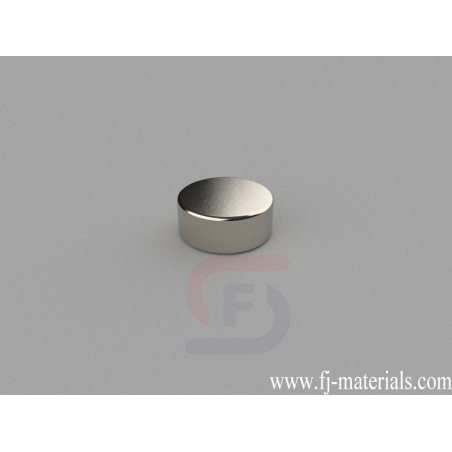

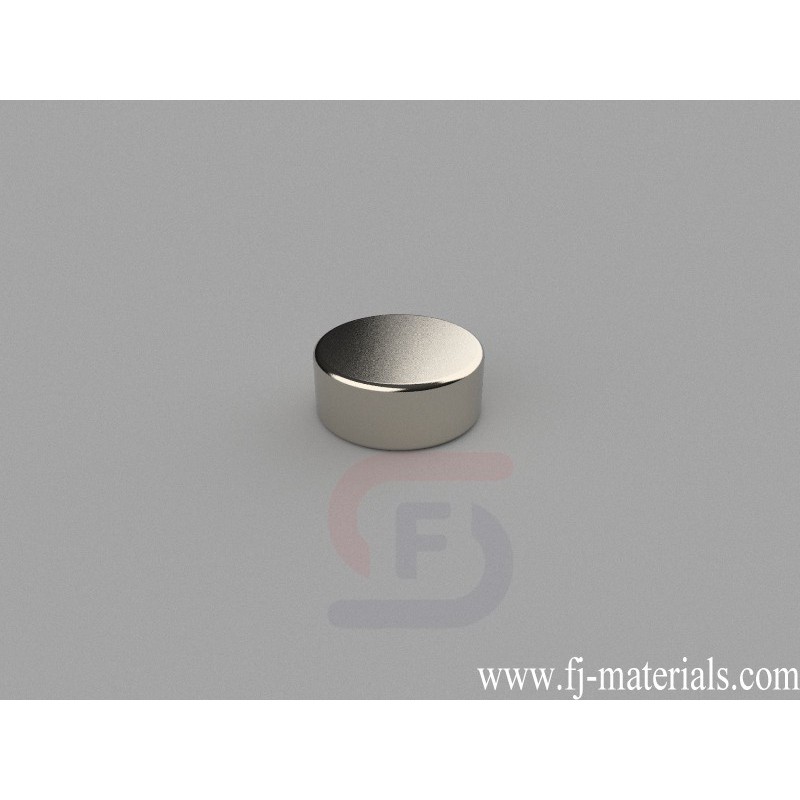

12.6mm dia. x 5mm thick Round Disc Magnets | D12.6x5mm-N35

D12.6x5mm-N35 Neodymium Magnets is made of Grade N35 NdFeB, Nickel Plated. The dimension is 12.6mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 7.74 lbs.

Yiwu Fenjiao E-commerce Firm supply D12.6x5mm-N35 Neodymium Magnets with high quality at competitive price.

D12.6x5mm-N35 Neodymium Magnets is made of Grade N35 NdFeB, Nickel Plated. The dimension is 12.6mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 7.74 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D12.6x5mm-N35

Data sheet

Item Number
D12.6x5mm-N35
Material
NdFeB
Grade
N35
Size
12.6mm dia. x 5mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.164 oz. (4.64 g)
Pull Force
7.74 lbs
Diameter
D. 9.53-12.7mm
Thickness
B. 3.18-6.35mm
