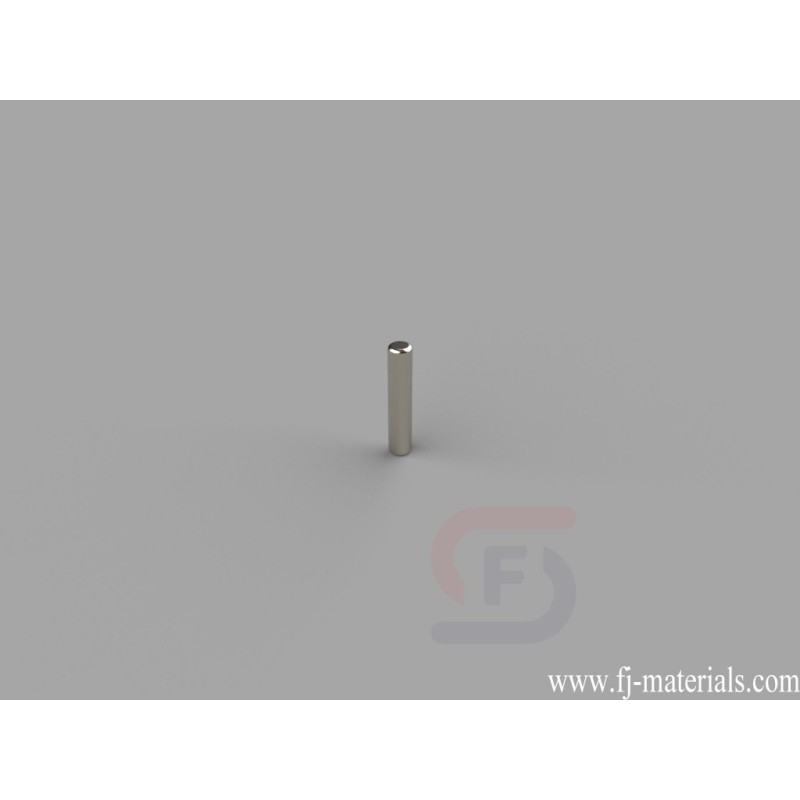

1/16 dia. x 5/16 inch thick Round Disc Magnets | D15

D15 Neodymium Magnets, 1/16 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 0.9 lbs.

D15 Neodymium Magnet's dimesion is 1/16" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D15 Neodymium Magnets, 1/16 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 0.9 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D15

Data sheet

Item Number
D15
Material
NdFeB
Grade
N42
Size
1/16" dia. x 5/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.1178 g
Pull Force
0.9 lbs
Diameter
A. 0.00-3.18mm
Thickness
C. 6.35-9.53mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
