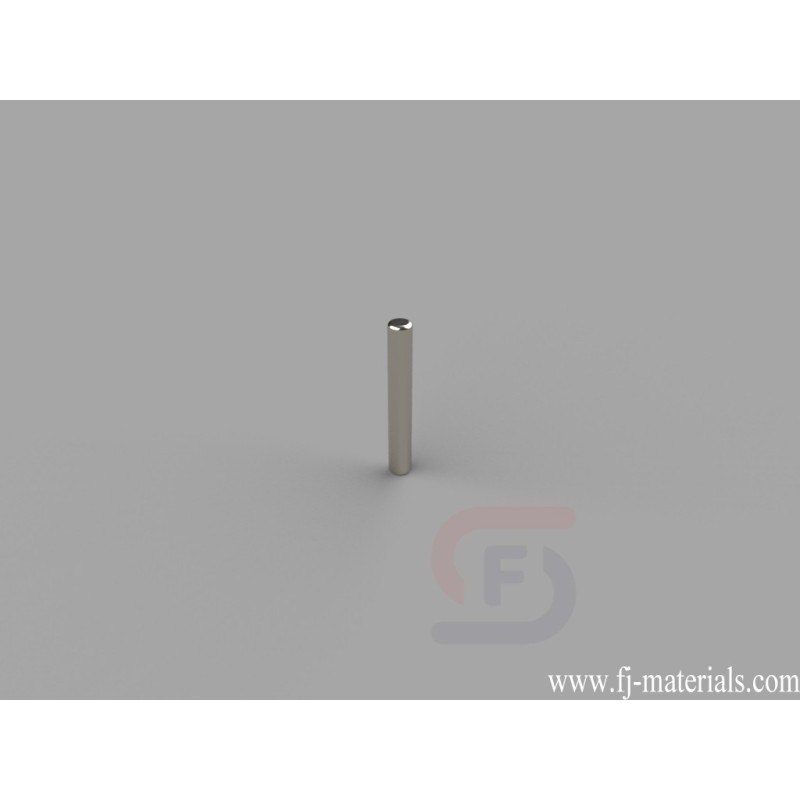

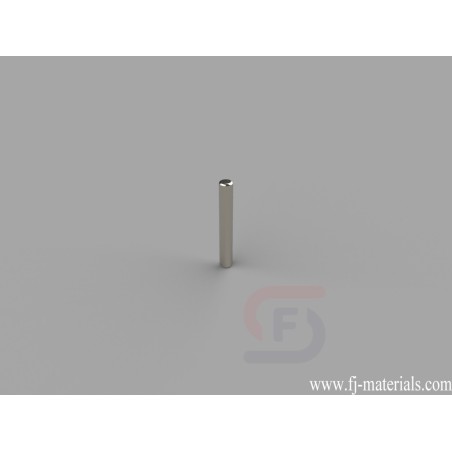

1/16 dia. x 7/16 inch thick Round Disc Magnets | D17

D17 Neodymium Magnets, 1/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 1.06 lbs.

D17 Neodymium Magnet's dimesion is 1/16" dia. x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D17 Neodymium Magnets, 1/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 1.06 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D17

Data sheet

Item Number
D17
Material
NdFeB
Grade
N42
Size
1/16" dia. x 7/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.165 g
Pull Force
1.06 lbs
Diameter
A. 0.00-3.18mm
Thickness
D. 9.53-12.7mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
